Kyocera FS-C8600DN Service Manual

2MN/2N1-1
1-5-79

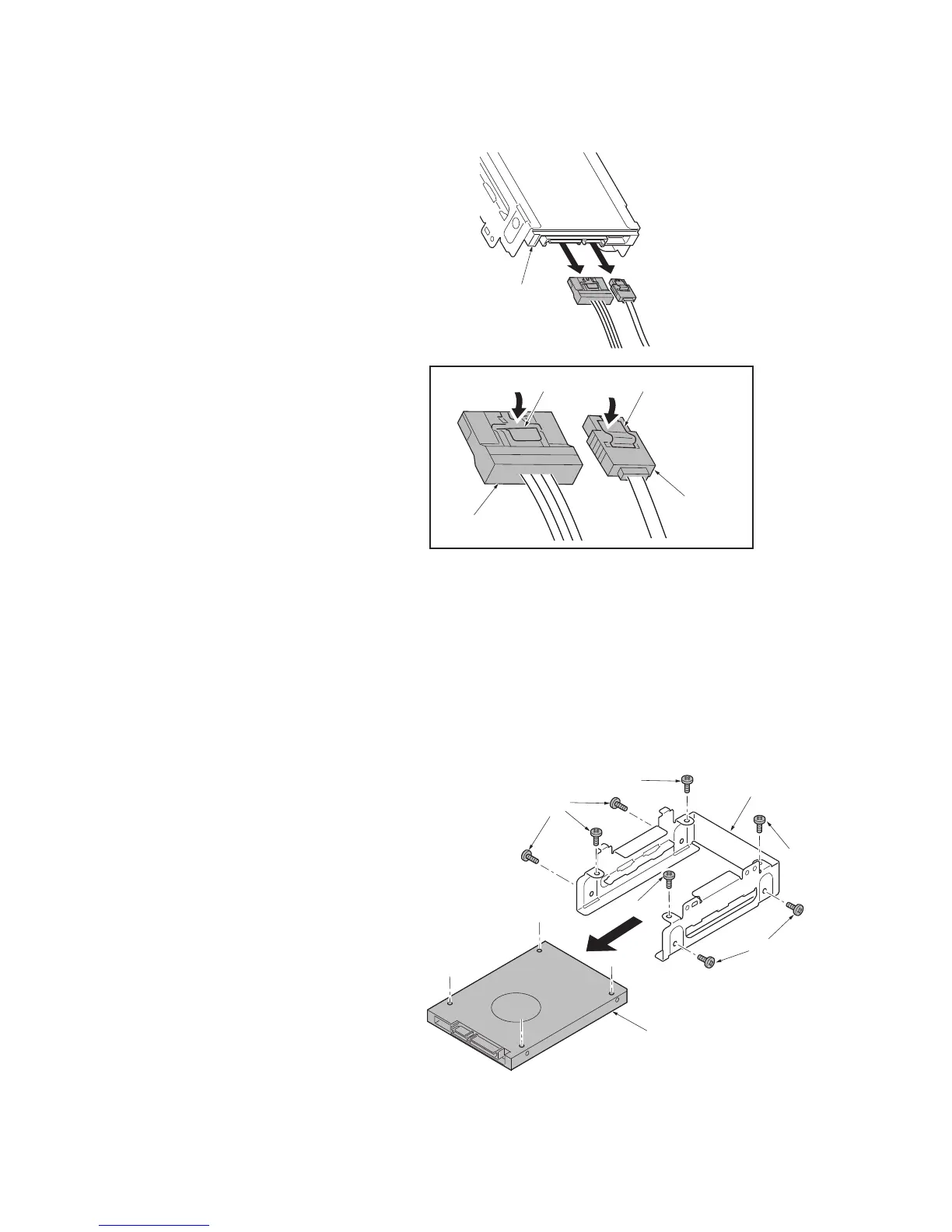

6. Remove two connectors from the hard
disk unit while pushing the lock lever.
Number of hard disk unit equipmentl: 1
Figure 1-5-121
7. Remove four screws and then remove
the hard disk unit from the HDD
bracket.
8. Replace the hard disk unit and refit all
the removed parts.
9. Perform maintenance mode U024
(HDD formatting) (see page 1-3-27).
10. Install the firmwares by the following
procedure.
1)Connects to the machine the USB
memory that preserved Software
LANGUAGE BR, JP (Opt Font,Opt
Msg), and the PDF1.7 resource.
The firmware is installed by switching
the main power switch to ON/OFF.
11. Perform maintenance mode U917
(backup data writing) (see page 1-3-
141).
Figure 1-5-122
Hard disk
unit
Connector
Connector
LeverLever
Screw
Screw
Screw
Screws
Screws
Hard disk unit
HDD bracket

Kyocera FS-C8600DN Specifications

General

Color	Yes
Print technology	Laser
Maximum resolution	9600 x 600 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	5.4 s
Time to first page (color, normal)	6.6 s
Print speed (black, normal quality, A3)	22 ppm
Print speed (black, normal quality, A4/US Letter)	45 ppm
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Number of print cartridges	-
Page description languages	Diablo 630, Microsoft XPS, PCL 5c, PCL 6, PCL XL, PDF 1.7
Paper input type	Cassette, Paper tray
Total input capacity	650 sheets
Total output capacity	500 sheets
Maximum input capacity	7650 sheets
Multi-Purpose tray input capacity	150 sheets
Paper tray media types	Banner, Plain paper, Thick paper
ISO A-series sizes (A0...A9)	A3, A4, A5
Maximum ISO A-series paper size	A3
Wi-Fi	No
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Ethernet
Memory slots	2
Storage media	HDD
Processor family	PowerPC
Compatible memory cards	CF
Maximum internal memory	2048 MB
Internal storage capacity	160 GB
Sound power level (standby)	33.9 dB
Sound pressure level (printing)	52.3 dB
Certification	GS, TüV, CE
Product color	Black
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	1140 W
Power consumption (standby)	170 W
Power consumption (printing)	1000 W
Power consumption (PowerSave)	15 W
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	84433210

Weight and Dimensions

Depth	787 mm
Width	672 mm
Height	744 mm
