13-14 Event History Display Model 831 Manual
Continuation
When the level no longer exceeds the trigger level we enter
the Con? state where we wait for the continuation time in
preparation to end the event. We continue processing event
data and transition back to the Valid state if the level exceeds
the trigger level during the continuation time.
Typical Icon Sequence
In a typical measurement, these icons will appear
sequentially in the order presented above as the event
measurement proceeds from the period prior to an event to
the conclusion of the event.

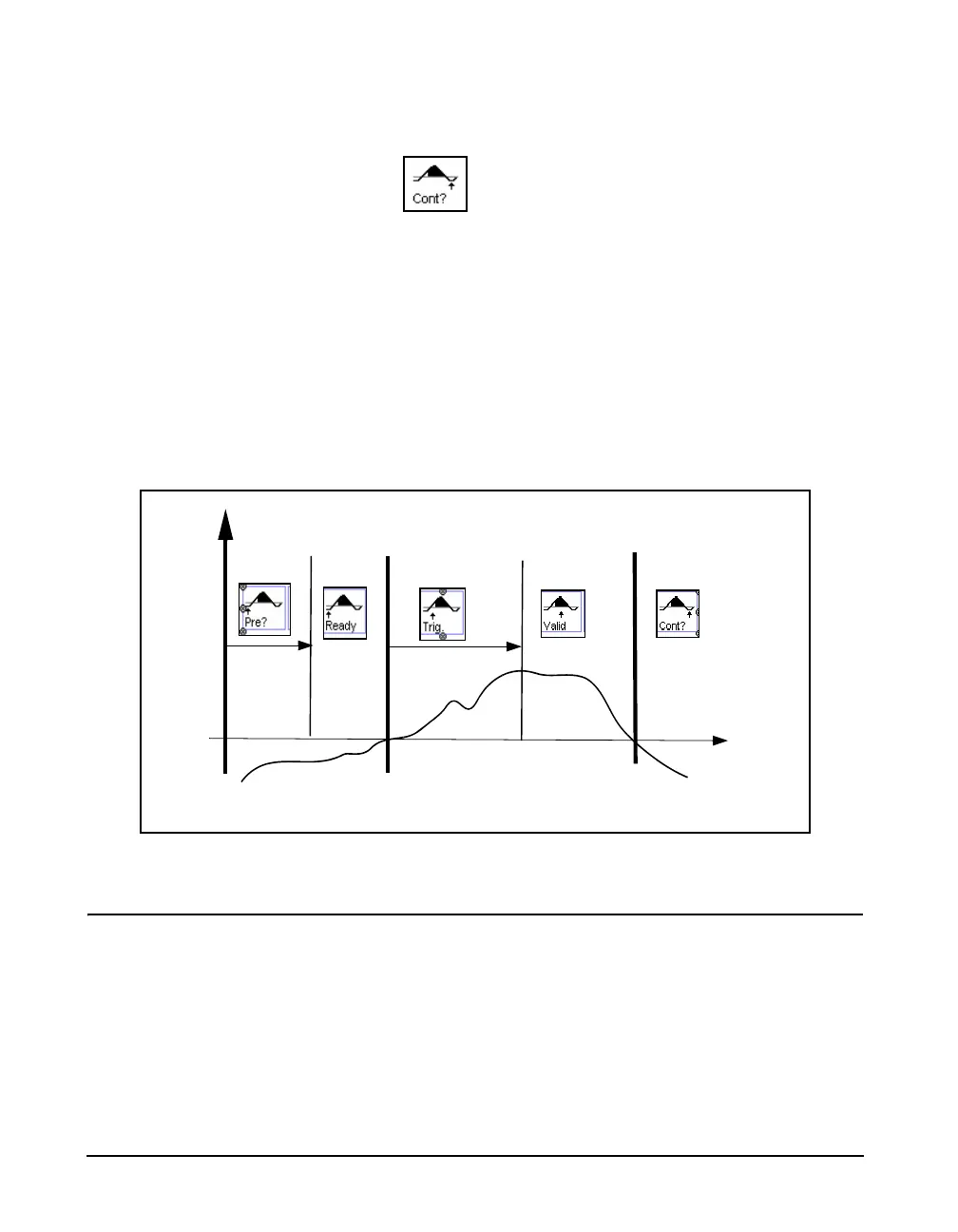

FIGURE 13-12 Typical Icon Sequence
Sound Recording in Progress
When automatic event sound recording has been enabled, as
described in "Event Sound Recording" on page 16-14, the
Sound Recording in Progress icon will be illuminated
whenever a sound recording is being made. This icon is
greyed out when no recording is taking place.
Threshold Exceedance
Pre-Trigger
Time
Minimum
Duration
Drops Below Threshold
TIME
dB
Run
