15-14 Viewing and Analyzing Results Model 831 Manual
Quality Detail
The left/right arrow keys will scroll
through the frequencies.
This display provides details about the quality indicators for
the selected frequency. If a metric is determined to be "Fair"
or "Poor", the criteria that failed is shown in the right-hand
column as shown in FIGURE 15-19.

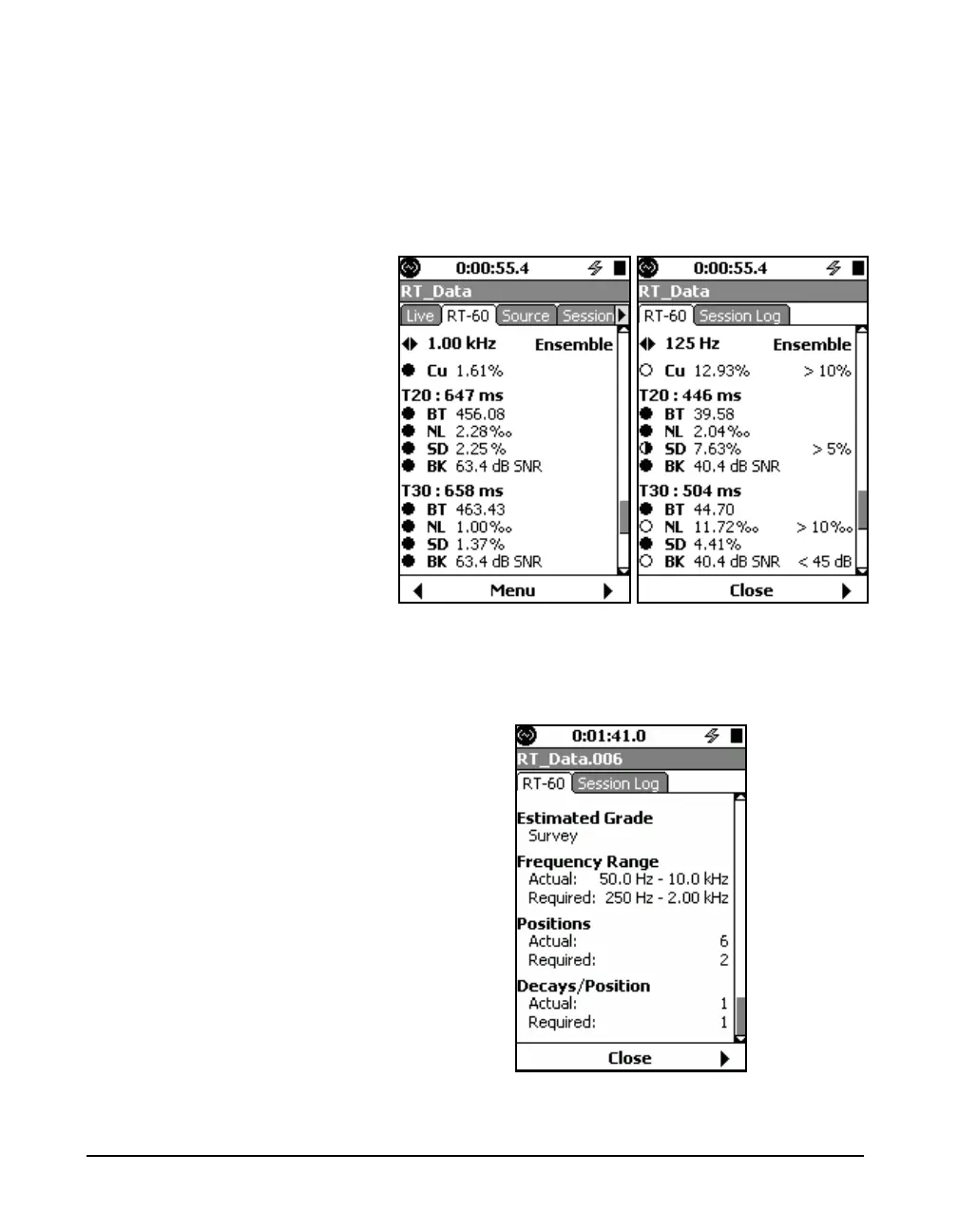

FIGURE 15-19 Quality Detail
Accuracy Grade
For more information on accuracy
grade, including Estimated Grade,
Frequency Range, Positions, and
Decays, see ISO 3382-2:2008 (E)
and the G4 LD Utility manual.
The Accuracy Grade page shows values according to the
criteria described in ISO 3382-2:2008 (E).
FIGURE 15-20 Accuracy Grade Page
