Model 831 Manual RS-232 Tab 20-11

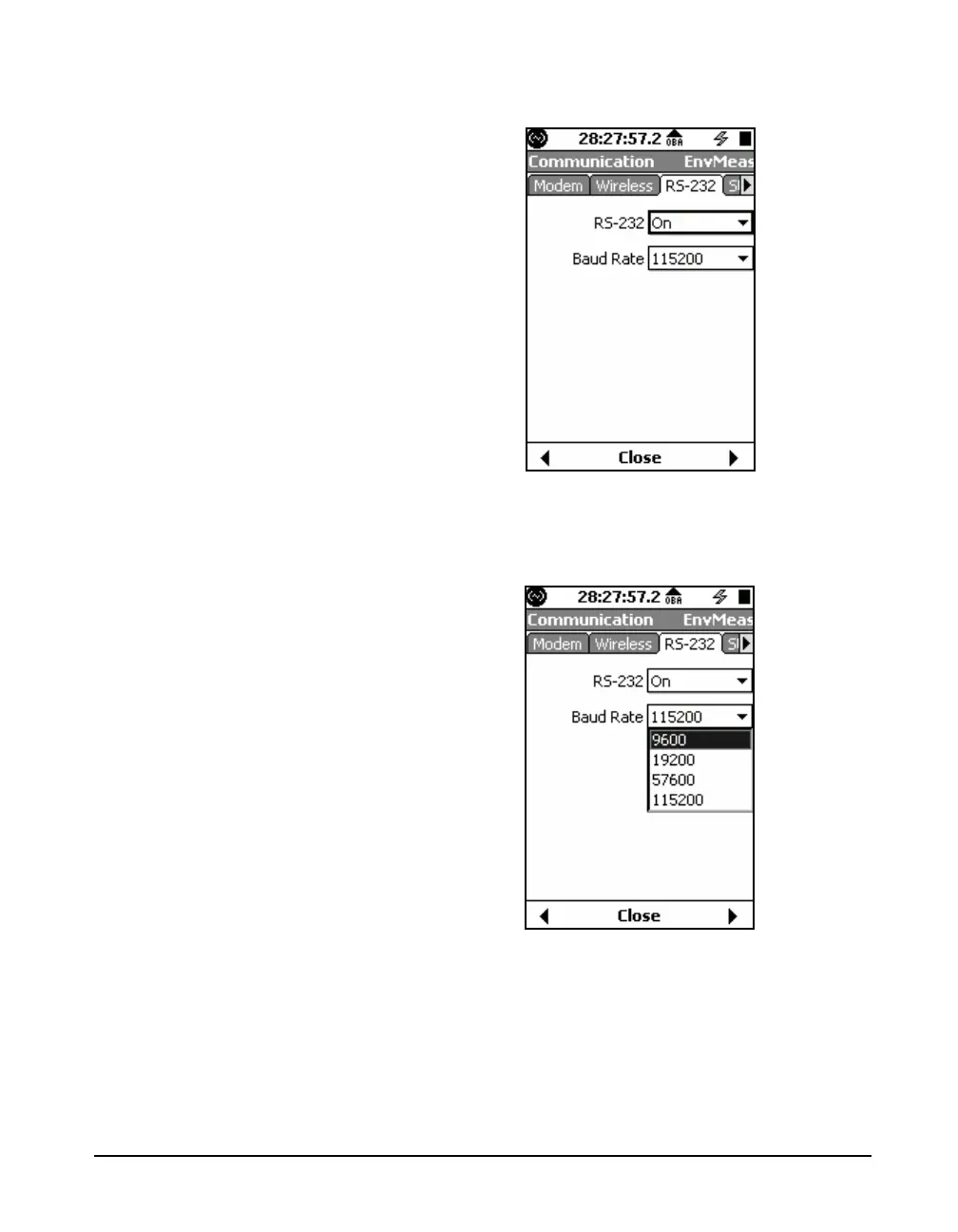

FIGURE 20-13 RS-232 Menu

Step 7 Set the desired Baud rate as shown in FIGURE 20-

14.

FIGURE 20-14 Baud Rate Menu
