LSI Corporation
- 269 -
12Gb/s MegaRAID SAS Software User Guide
March 2014
Chapter 9: Configuration
Creating a New Configuration

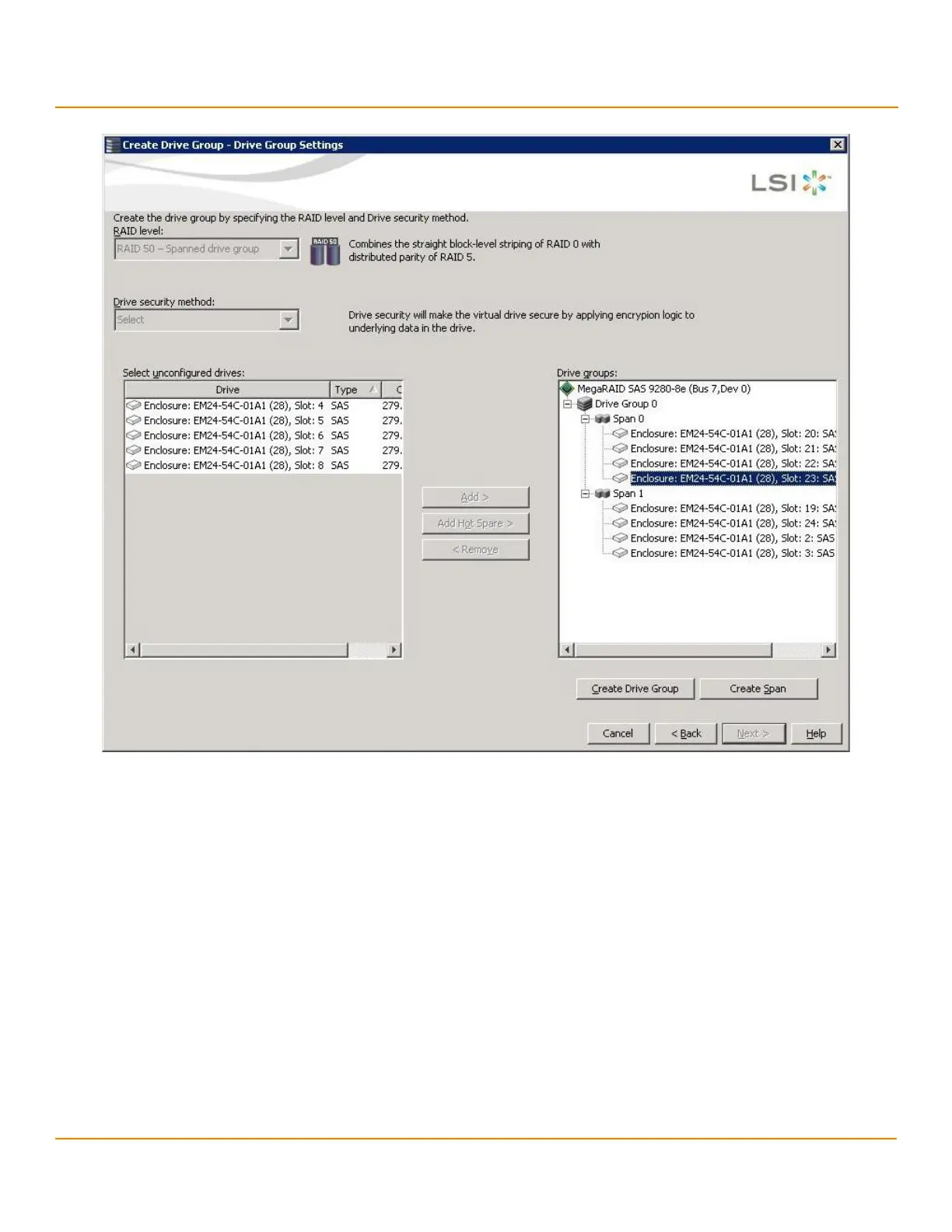

Figure 160 Span 0 and Span 1 of Drive Group 0
f. Click Create Drive Group to make a drive group with the spans.
g. Click Next to complete this step.
The Create Virtual Drive - Virtual drive settings window appears, as shown in the following figure. The
drive group and the default virtual drive settings appear. The options to update the virtual drive or remove
the virtual drive are grayed out until you create the virtual drive.
NOTE The parameters in the Create Virtual Drive - Virtual drive settings
window display in Disabled mode (grayed out) for SAS-Integrated
RAID (IR) controllers because these parameters do not apply to SAS-IR
controllers.
