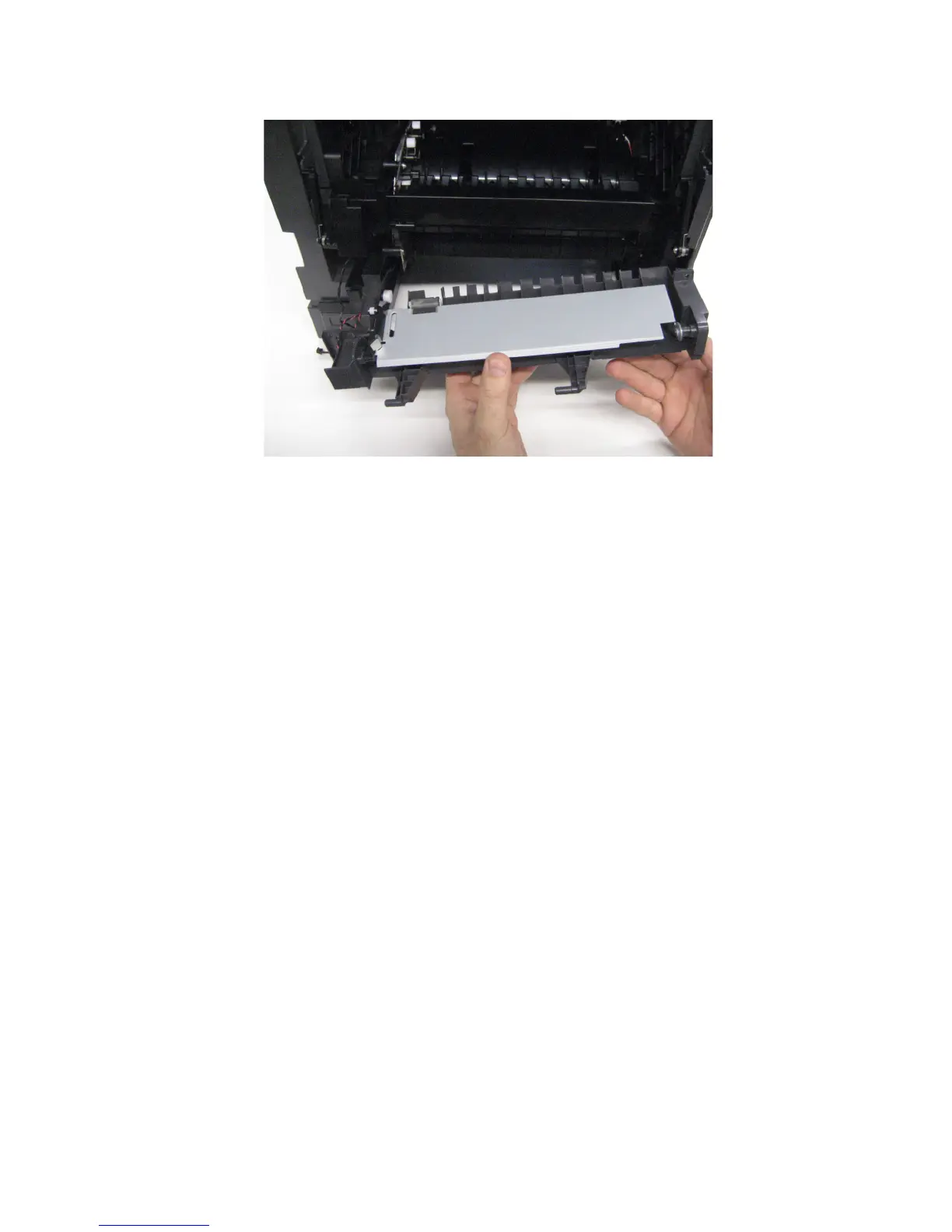

11 Remove the MPF feeder lift plate.
Installation warning: When replacing the MPF feeder lift plate, ensure that the MPF feeder lift plate cable and
solenoid cable are properly rerouted and that all cables are properly reconnected. Make sure that these cables
are not pinched between the MPF feeder lift plate and the frame before replacing the screws.
MPF pick roller removal
1 Remove the left cover. See “Left cover removal” on page 489.
2 Remove the controller board access shield. See “Controller board access shield removal” on page 494.
3 Remove the media tray. See “Media tray removal” on page 479.
4 Open the control panel door.
5 Remove the toner cartridge.
6 Remove the imaging unit.
7 Remove the media turn guide. See “Media turn guide removal” on page 394.
4063
Repair information
400
