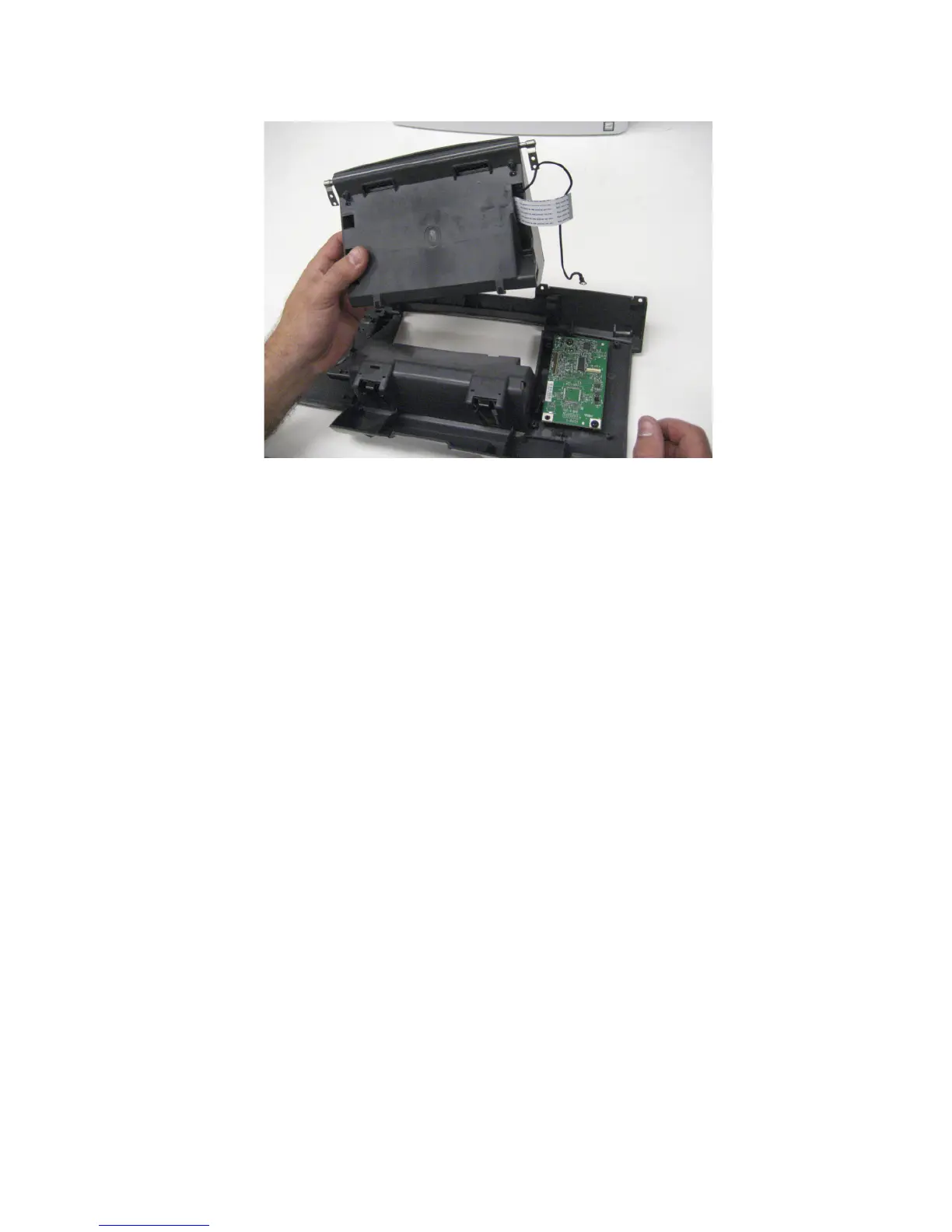

9 Remove the 7” tilting display from the control panel.
Control panel removal (2.4‑inch screen)
Warning—Potential Damage: When replacing the control panel, control panel board, or controller board, replace
only one component at a time. Replace the required component and perform a POR before replacing a second
component. If this procedure is not followed, the printer will be rendered inoperable. Never replace both the control
panel and the controller board without a POR after installing each one or the printer will be rendered inoperable.
Never install or remove these components as a method of troubleshooting while operating in normal user mode.
See “Controller board/control panel replacement” on page 356.
Warning—Potential Damage: When a component has been installed in a machine and has been powered up in
normal user mode, it cannot be used in another machine; it must be returned to the manufacturer. The machine
must be powered up in Diagnostic mode or the controller board, control panel boards, or control panel will become
locked.
1 Raise the control panel to its uppermost position.
2 Remove the control panel left bezel. See the “Control panel left bezel removal” on page 446.
