Sensor (finisher bin media present) removal

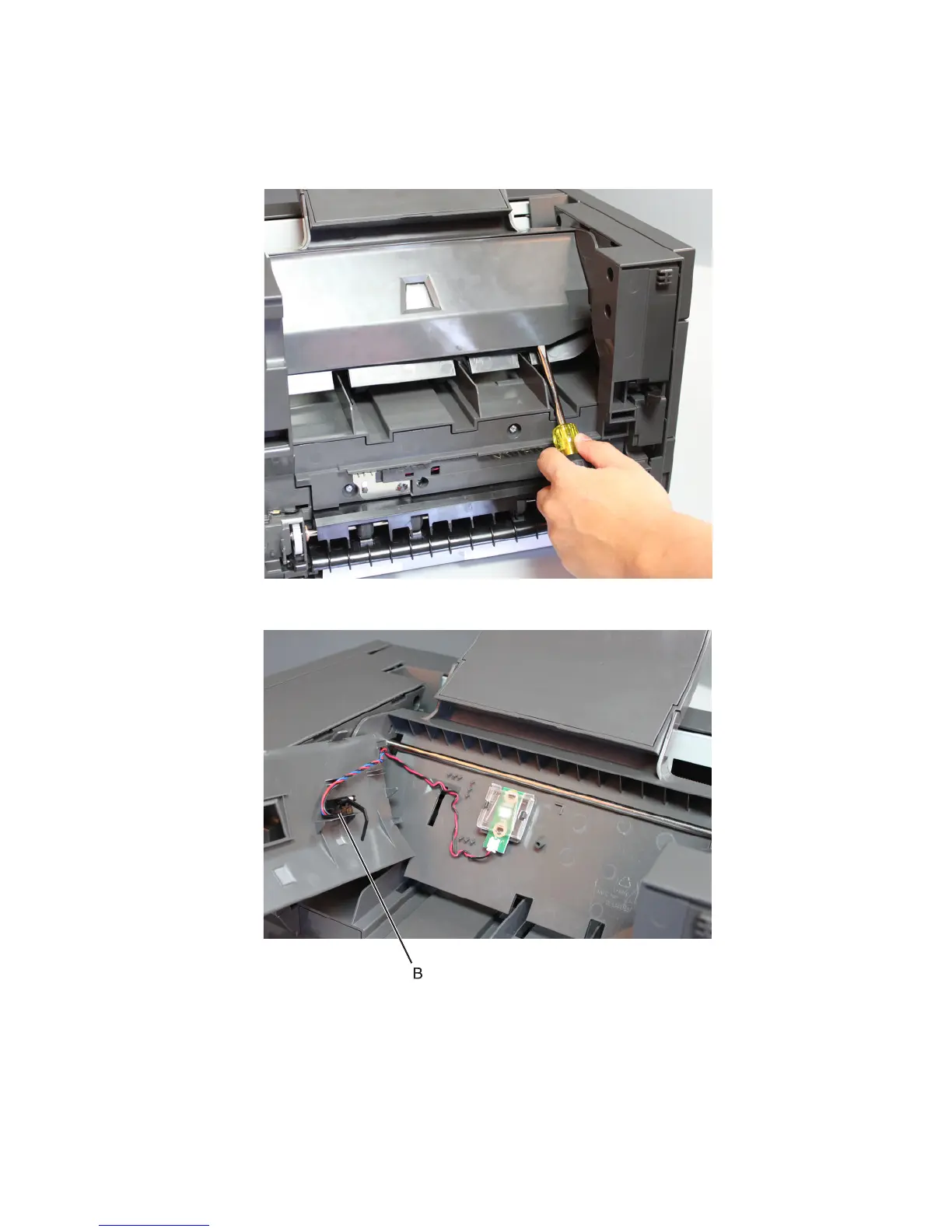

1 Remove the stapler left cover. See “Stapler left cover removal” on page 630.
2 With a prying tool, open the LED sensor cover.
3 Release the latches holding the sensor (B) to the cover.
4 Disconnect the cable from the stapler controller PCBA, then remove the sensor (finisher bin media present).
