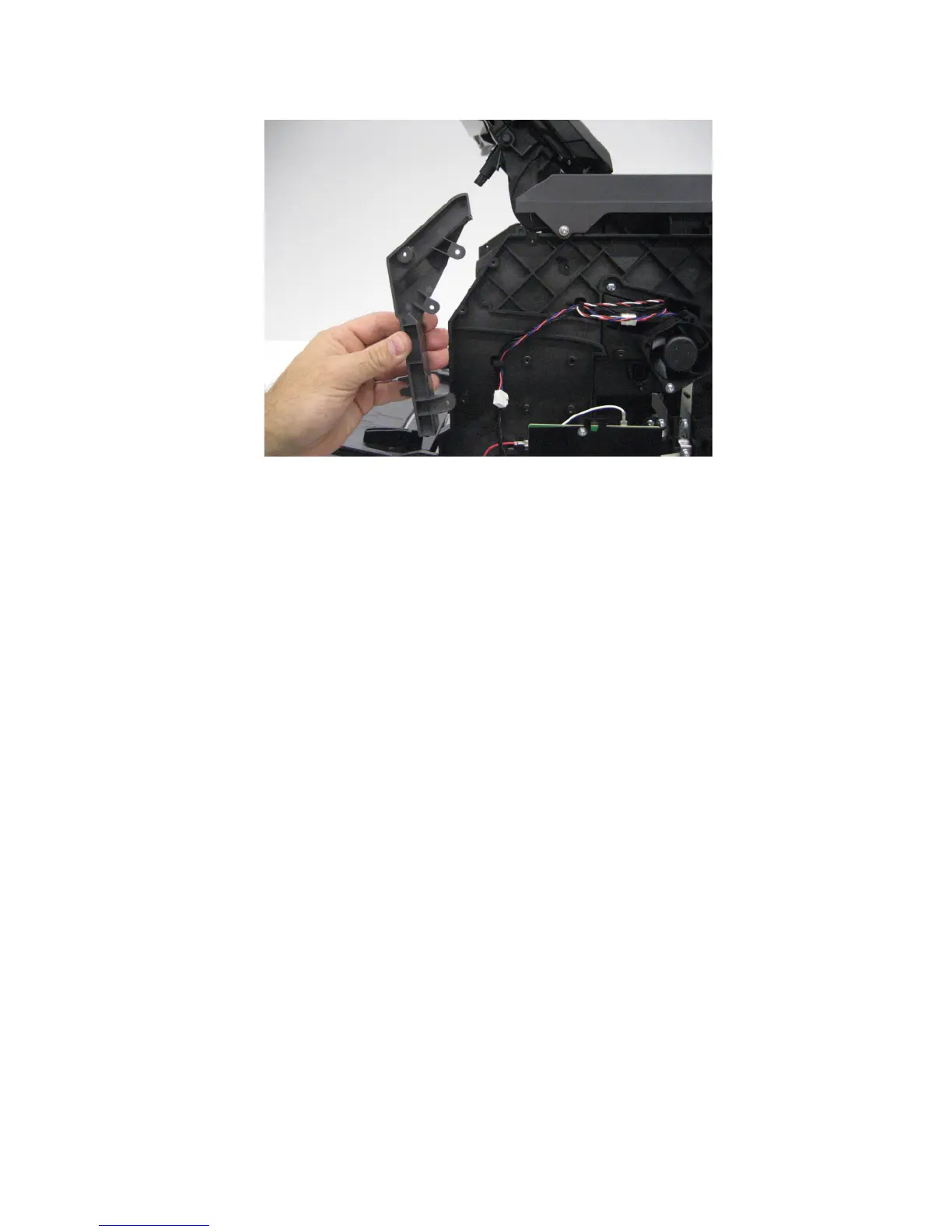

5 Remove the right inner cover.
Sensor (input) removal
1 Remove the left cover. See “Left cover removal” on page 489.
2 Remove the controller board access shield. See “Controller board access shield removal” on page 494.
3 Remove the media tray. See “Media tray removal” on page 479.
4 Remove the front door. See “Front door removal” on page 383.
5 Remove the toner cartridge.
6 Remove the imaging unit.
7 Remove the MPF feeder lift plate. See “MPF feeder lift plate removal” on page 397.
8 Remove the media turn guide. See “Media turn guide removal” on page 394.
9 Remove the media vertical guide. See “Media vertical guide removal” on page 395.
10 Remove the duplex exit diverter. See “Duplex exit diverter removal” on page 381.
11 Remove the inner guide deflector. See “Inner guide deflector removal” on page 384.
4063
Repair information
407
