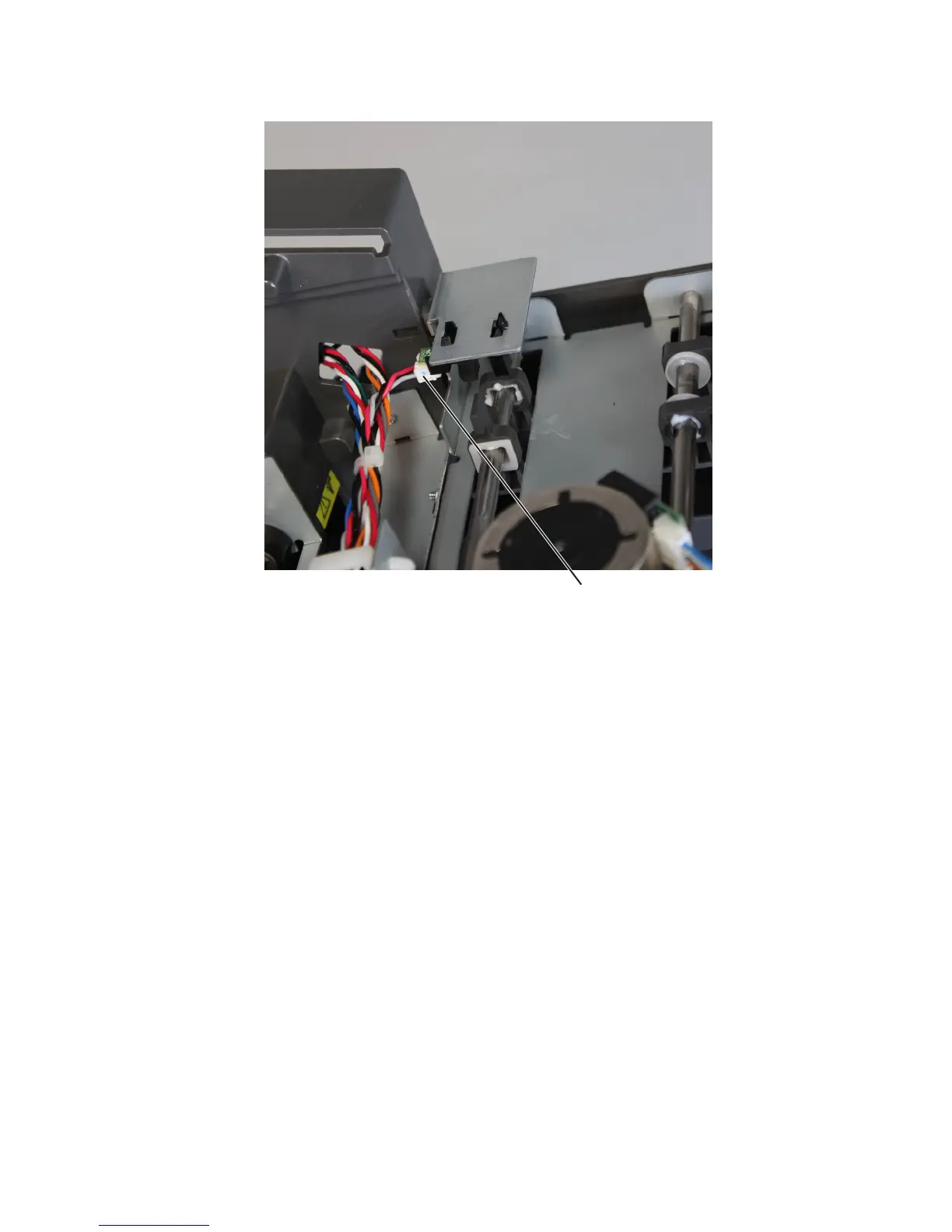

5 Disconnect the cable (B) from the sensor, and then release the latches securing the sensor to the frame.
B
6 Pull the sensor off the frame and remove.
Sensor (left tamper motor HP) removal
1 Remove the finisher left cover. See “Staple, hole punch left cover removal” on page 739.
2 Remove the finisher right cover. See “Staple, hole punch right cover removal” on page 741.
3 Remove the finisher top cover. See “Staple, hole punch top cover removal” on page 762.
