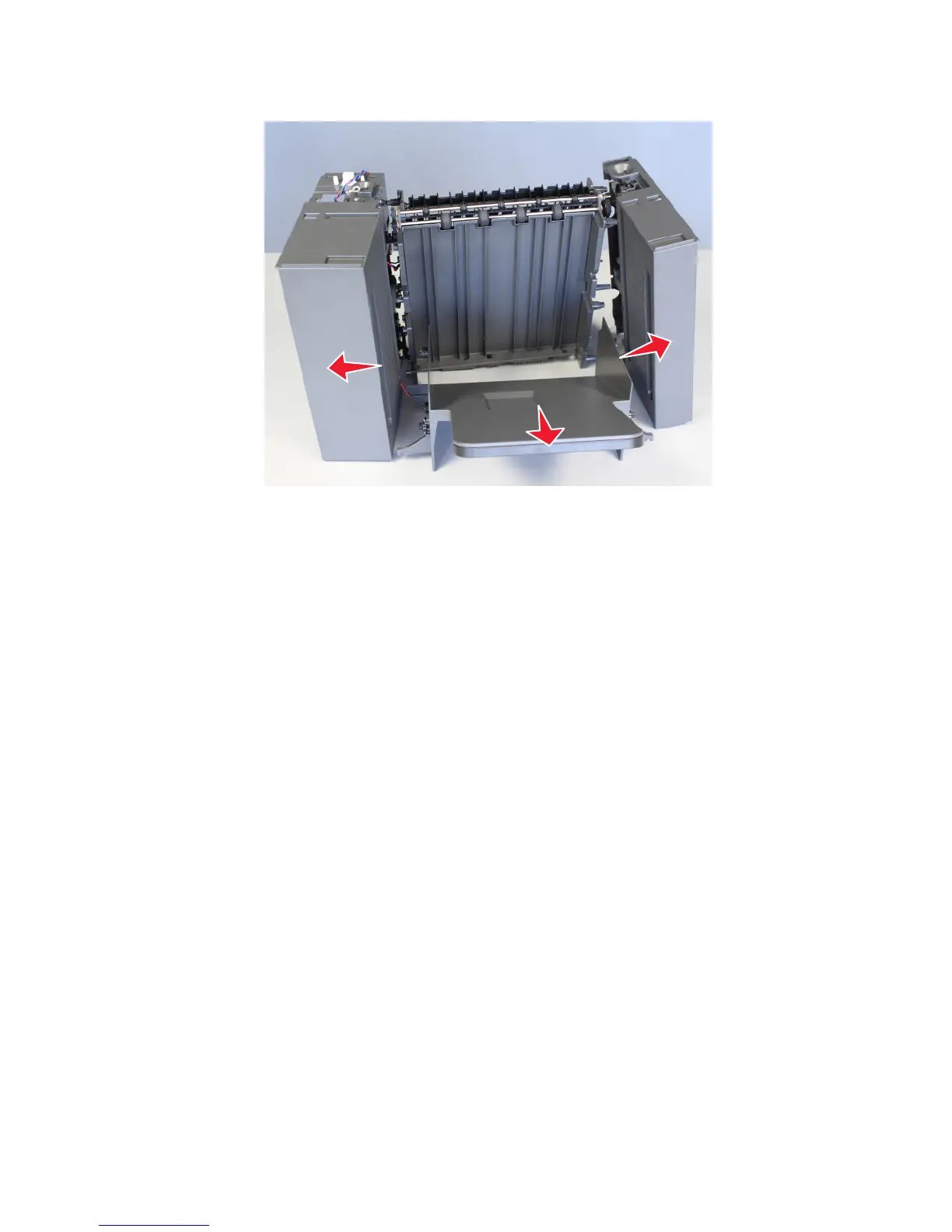

9 Disengage the bin from the right and left inner frames, and then remove the bin.
Sensor (HCOE pass through) removal
1 Remove the HCOE left cover. See “HCOE left cover removal” on page 589.
2 Remove the HCOE right cover. See “HCOE right cover removal” on page 588.
3 Remove the HCOE tray pinion. See “HCOE tray pinion removal” on page 598.
4 Remove the HCOE tray shaft. See “HCOE tray shaft removal” on page 614.
5 Remove the HCOE tray. See “HCOE bin removal” on page 615.
6 Disconnect the sensor cable J3 from the controller board.
4063
Repair information
