Tamper assembly removal
1 Remove the stapler left cover. See “Stapler left cover removal” on page 630.
2 Remove the stapler right cover. See “Stapler right cover removal” on page 624.
3 Remove the stapler top cover. See “Stapler top cover removal” on page 635.
4 Disconnect the tamper cables J2, J4 and J6 from the controller PCBA.

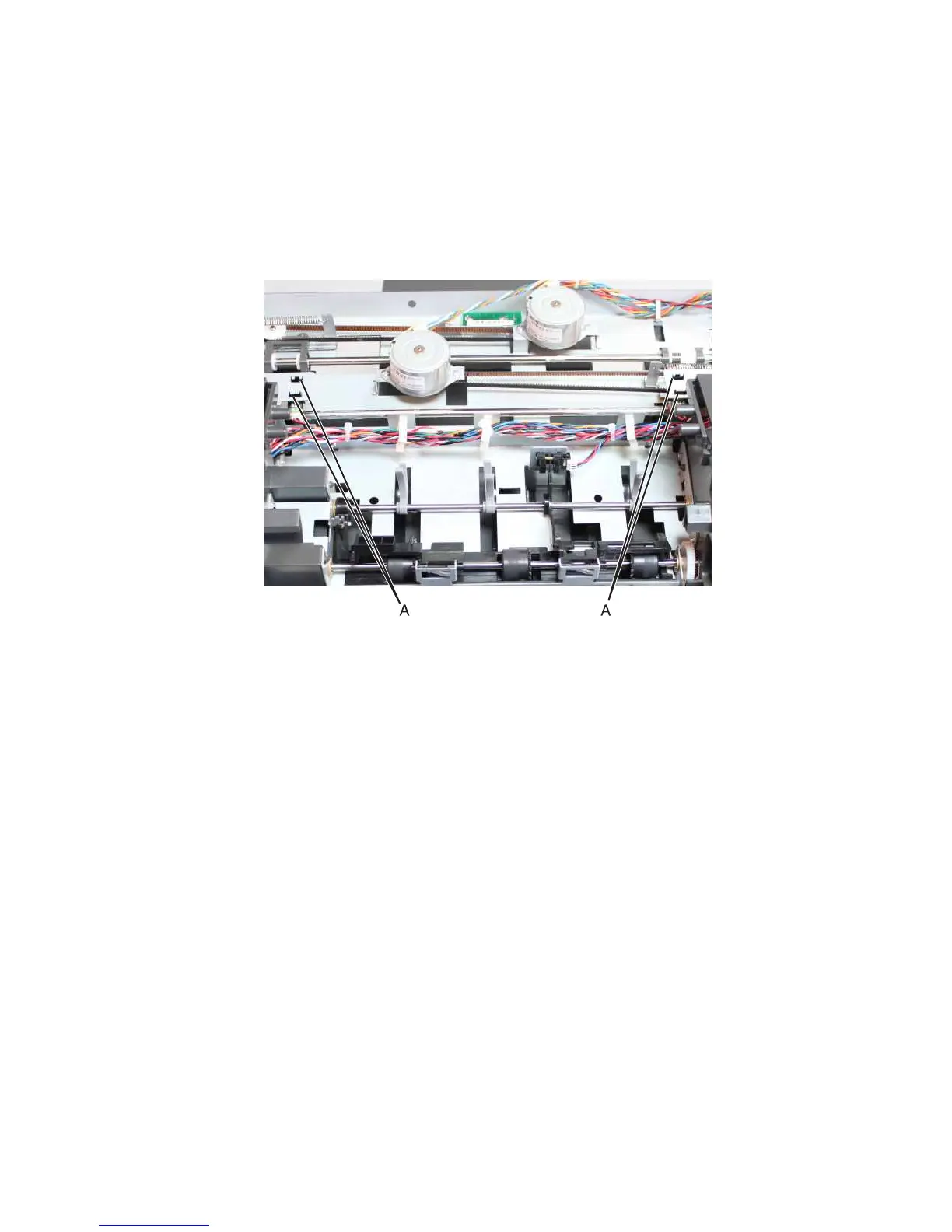

5 Release the latches (A) securing the sensors.
6 Remove the stapler output bin LED. See “Stapler output bin LED removal” on page 658.
7 Remove the left and right tamper motors. See “Tamper motor (left) removal” on page 656 and “Tamper motor
(right) removal” on page 656.
8 Remove the tamper drive belts. See “Tamper drive belt removal” on page 657.
4063
Repair information
654
