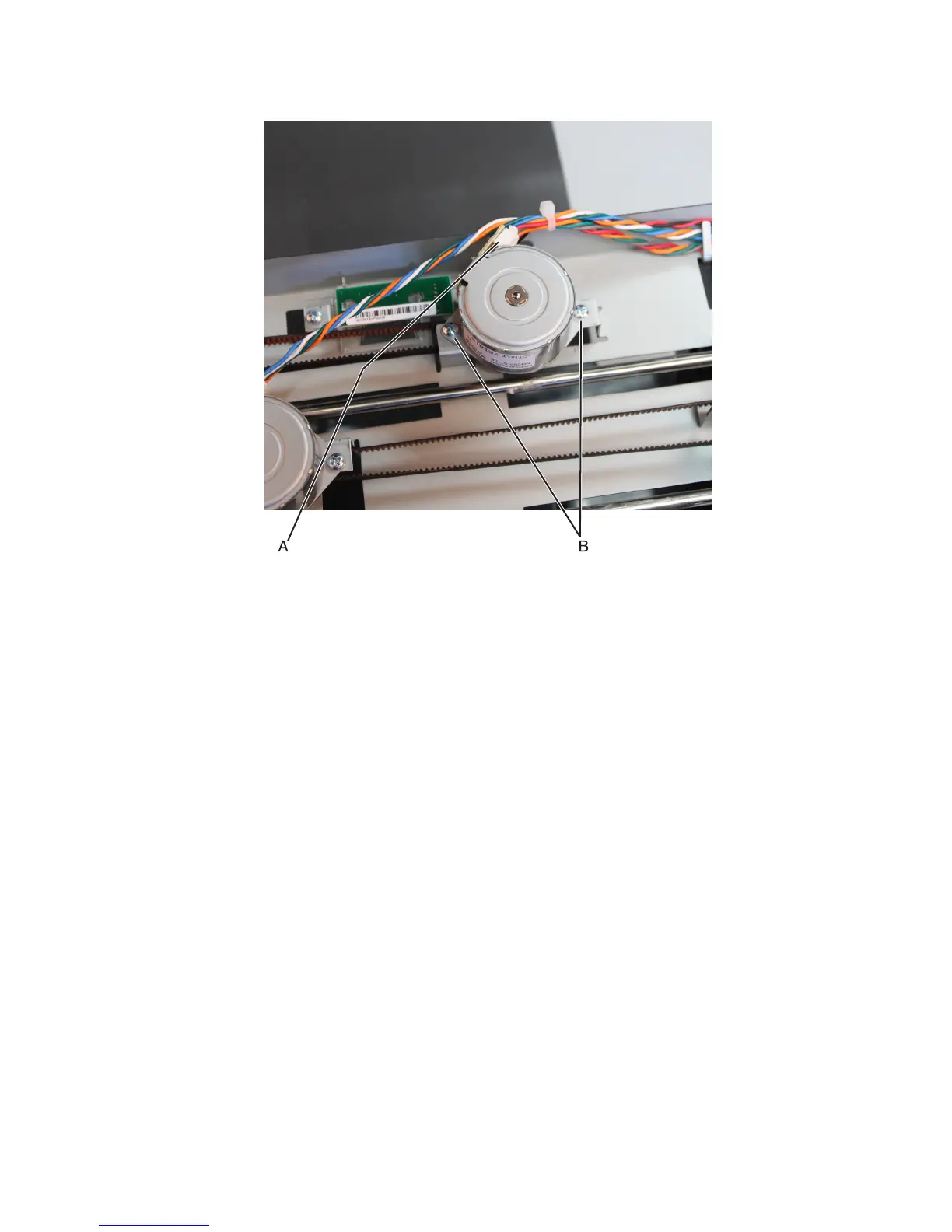

5 Remove the two screws (B), then remove the motor.
Tamper motor (left) removal
1 Remove the finisher left cover. See “Staple, hole punch left cover removal” on page 739.
2 Remove the finisher right cover. See “Staple, hole punch right cover removal” on page 741.
3 Remove the finisher top cover. See “Staple, hole punch top cover removal” on page 762.
4 Disconnect the tamper motor cable (A).
4063
Repair information
770
