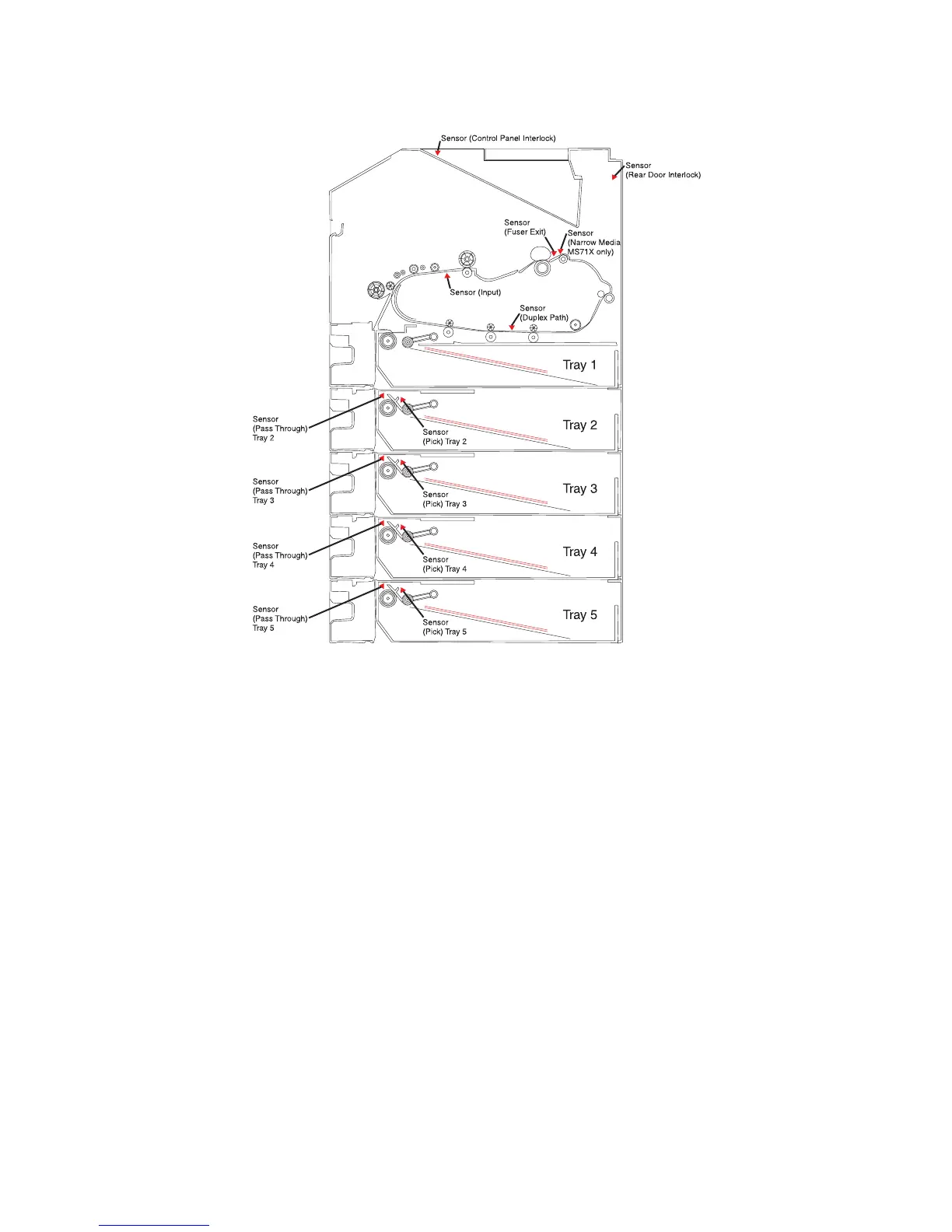

Models MS81x and MS71x sensors
Media tray assembly
• “Media tray” on page 889
• “Rear media guide” on page 889
• “Side media guide” on page 889
Media tray
The media tray is used to contain the media that will be printed on by the printer.
Rear media guide
The rear media tray guide assembly can be adjusted to different media sizes by moving it to the front or rear and can
be locked in position. The rear guide should come into contact with the media and hold it in position.
Side media guide
The media tray assembly is designed so that it can adjust to the media width in the media feed direction by moving the
side guide to the left or right.
4063
Appendix C: Theory of operation
889
