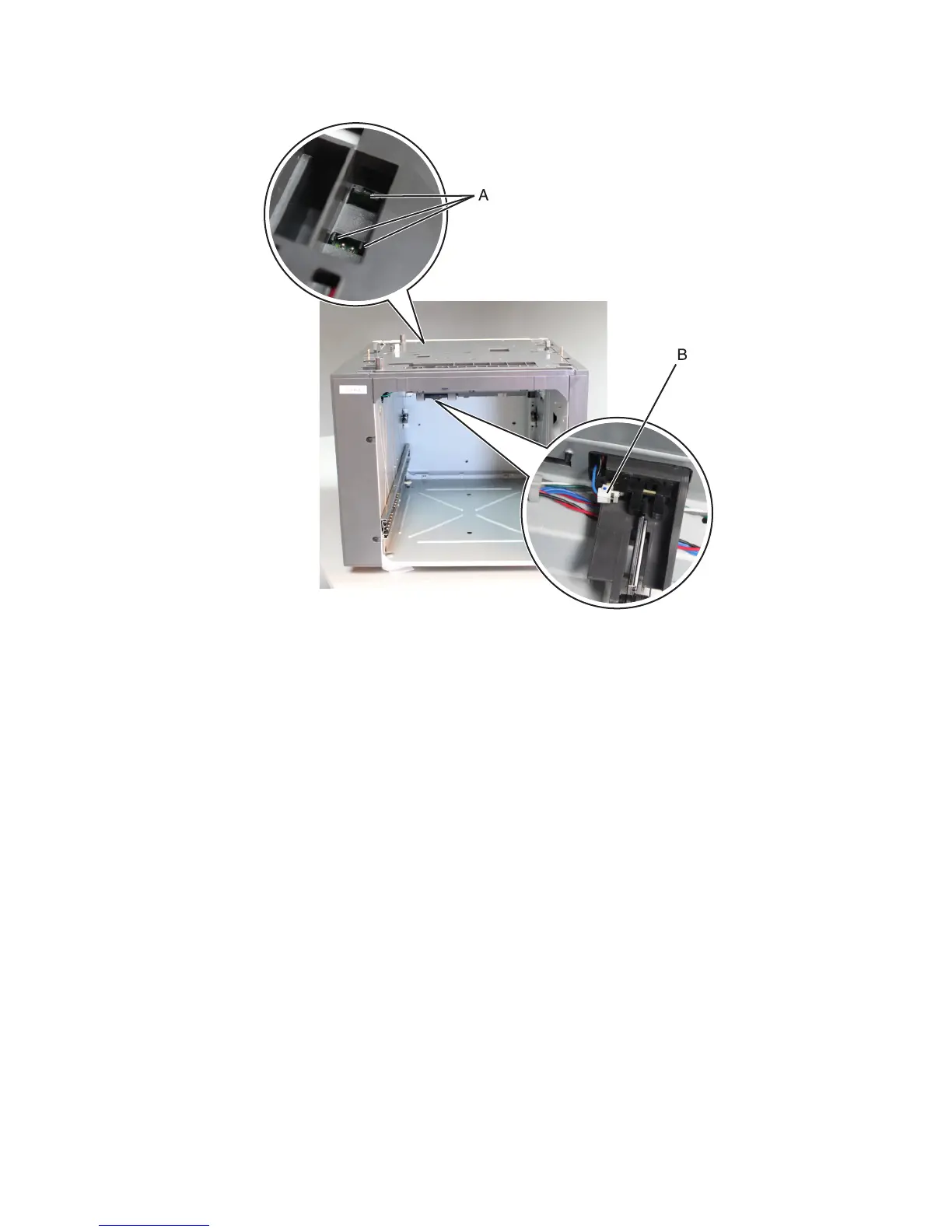

5 Disconnect the cable (B), and remove the sensor.
6 Flex the brace to release, then remove the flag.
Sensor (HCIT pick roller position) removal
1 Remove the HCIT. See “HCIT removal” on page 531.
2 Remove the HCIT rear cover. See “HCIT rear cover removal” on page 536.
3 Remove the HCIT left cover. See “HCIT left cover removal” on page 537.
4 Remove the HCIT top cover assembly. See “HCIT top cover assembly removal” on page 542.
4063
Repair information
548
