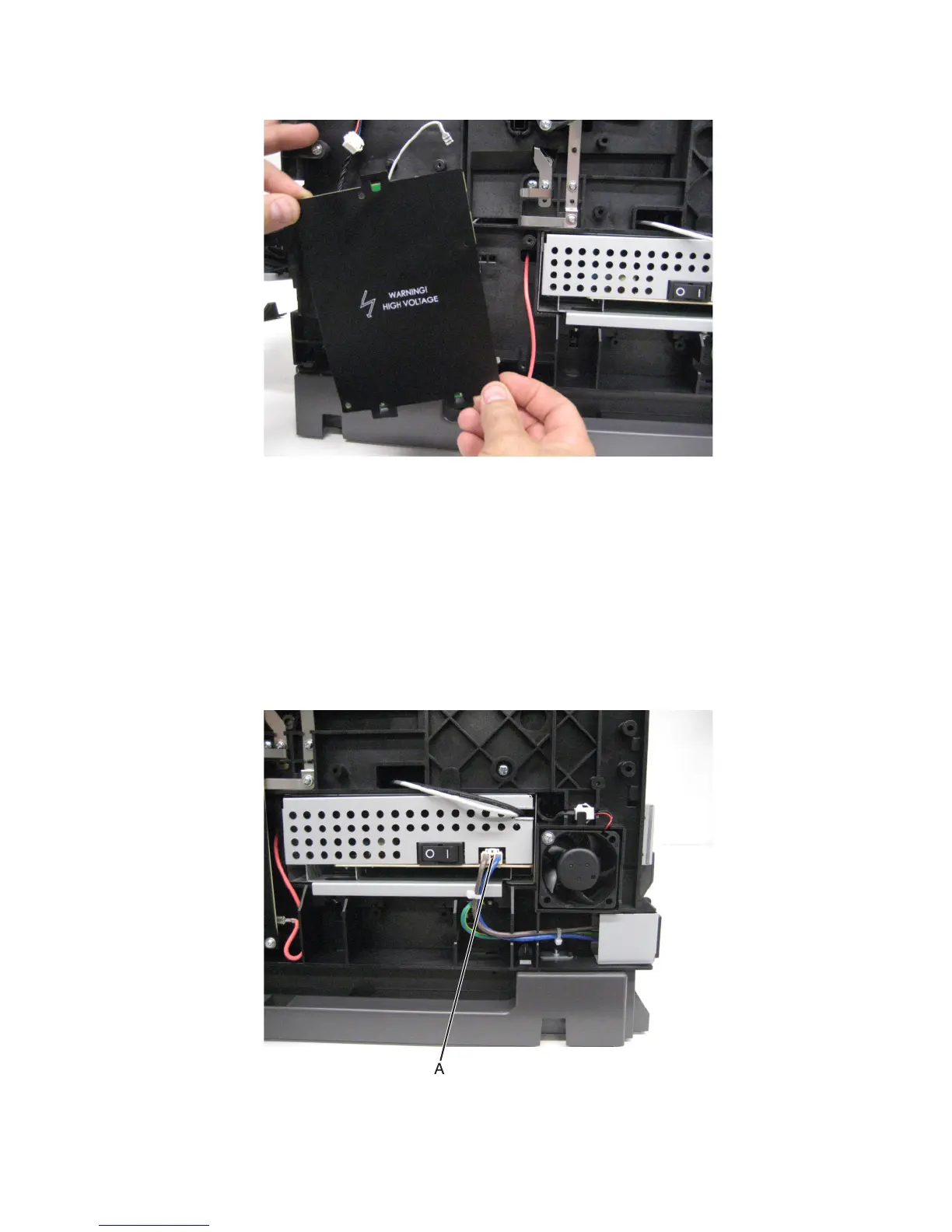

4 Remove the HVPS.
Installation notes:
• When replacing the HVPS, make sure the plastic insulating shield is properly reattached.
• When replacing the HVPS, make sure the cables are properly reattached.
LVPS removal
1 Remove the right cover. See “Right cover removal” on page 505.
2 Remove the rear lower cover. See “Rear lower cover removal” on page 454.
3 Disconnect the main power cable (A) from the LVPS.
4063
Repair information
511
