HCIT lift drive motor removal
1 Remove the HCIT rear cover. See “HCIT rear cover removal” on page 536.
2 Remove the HCIT right cover. See “HCIT right cover removal” on page 539.

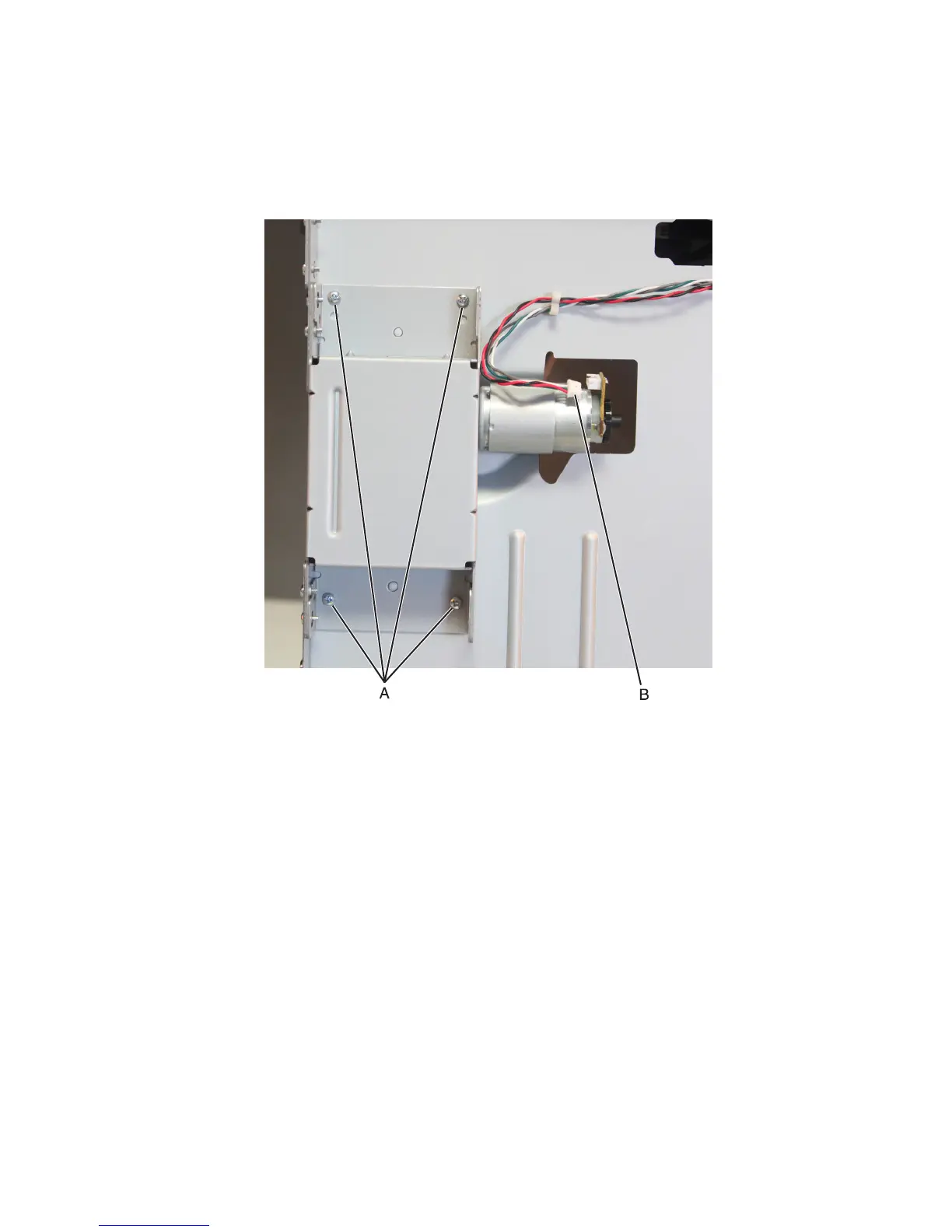

3 Disconnect the drive motor cable (B), then remove the four screws (A) from the drive motor frame.
4063
Repair information
544
