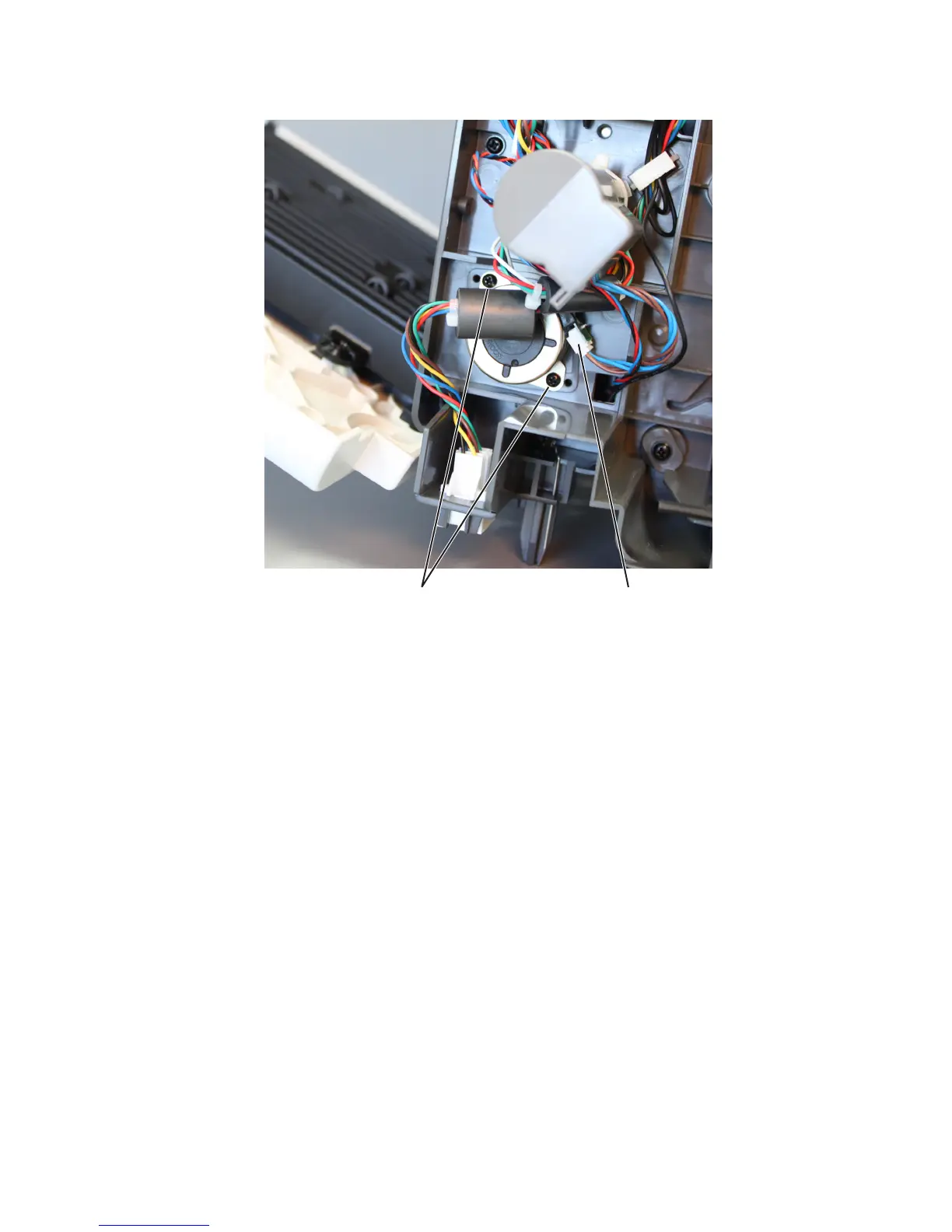

3 Remove the two screws (B), and then remove the motor.
AB
Sensor (HCOE tray HP) removal
1 Remove the HCOE left cover. See “HCOE left cover removal” on page 589.
2 Release the latches (A) securing the sensor to the bracket.
4063
Repair information
596
