Cartridge cooling fan removal
1 Remove the right cover. See “Right cover removal” on page 505.

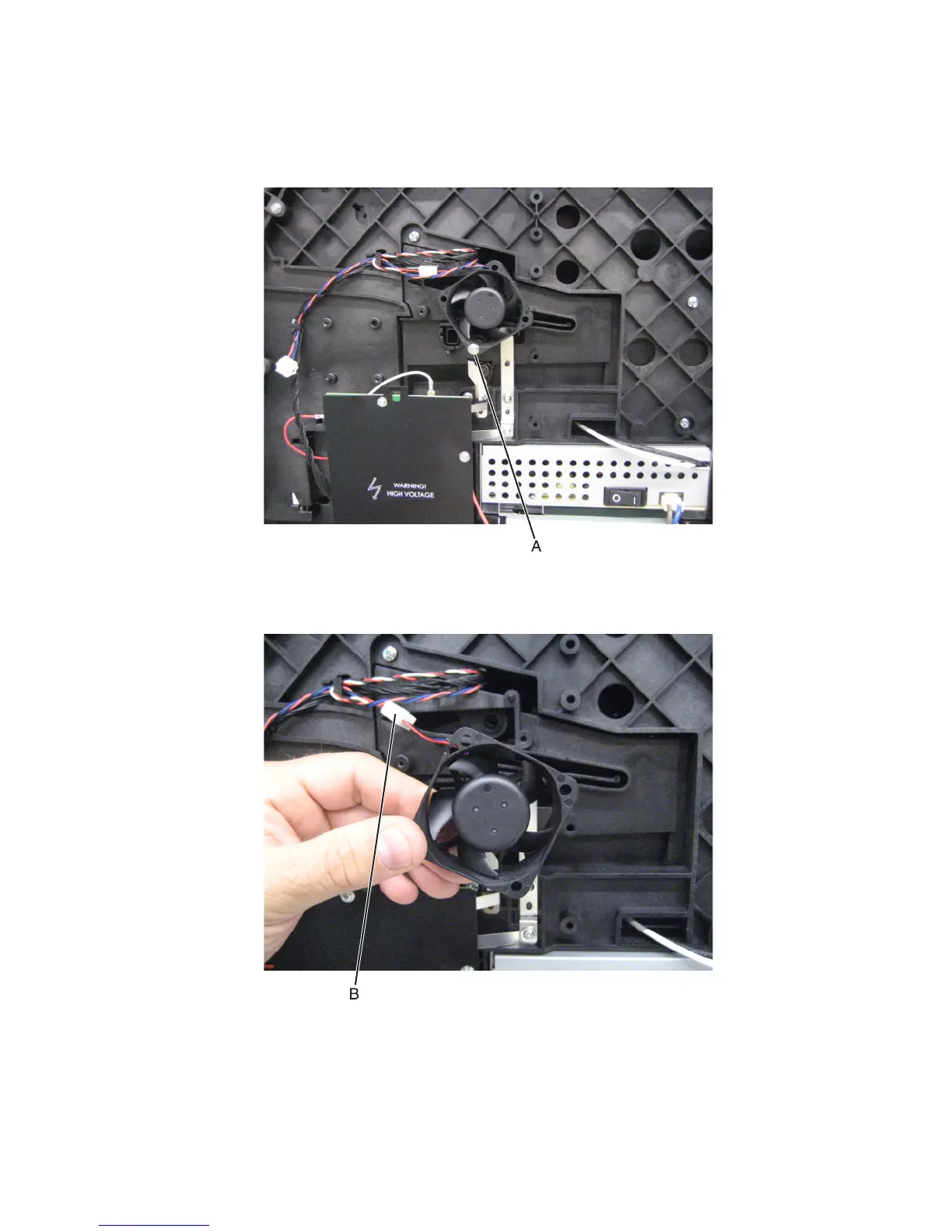

2 Remove the screw (A) securing the cartridge cooling fan to the machine.
3 Remove the cartridge cooling fan.
4 Disconnect the cable (B).
Installation note: When replacing the cartridge cooling fan, ensure that it is installed as shown in the picture.
