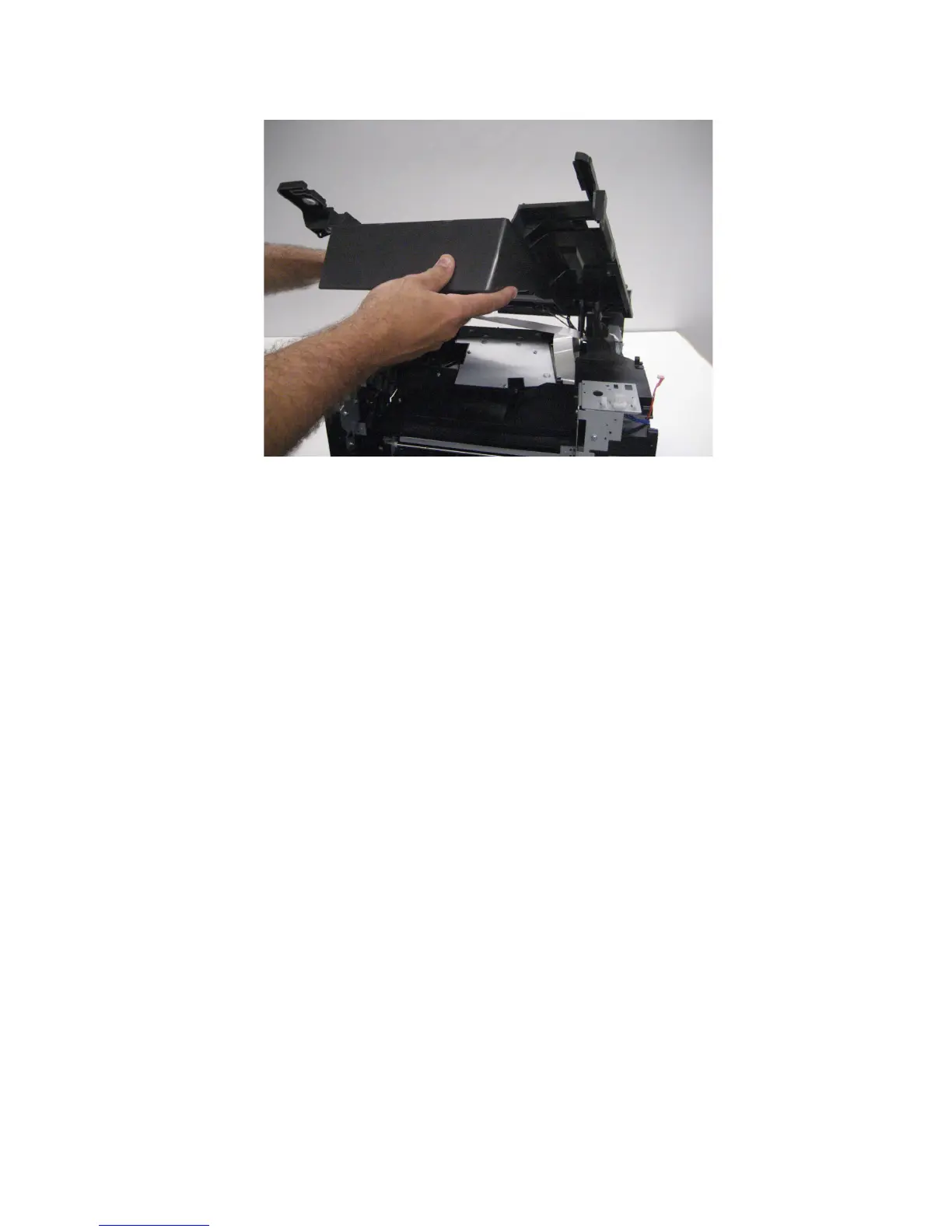

10 Remove the standard bin cover.
Upper redrive motor removal
1 Remove the rear door. See “Rear door removal” on page 456.
2 Remove the rear lower cover. See “Rear lower cover removal” on page 454.
3 Remove the fuser access door. See “Fuser access door removal” on page 461.
4 Remove the standard bin cover. See “Standard bin cover removal” on page 467.
5 Remove the standard bin full sensor. See “Sensor (standard bin full) removal” on page 466.
6 Remove the rear door interlock sensor. See “Sensor (rear door interlock) removal” on page 465.
4063
Repair information
469
