HCOE tray pinion removal

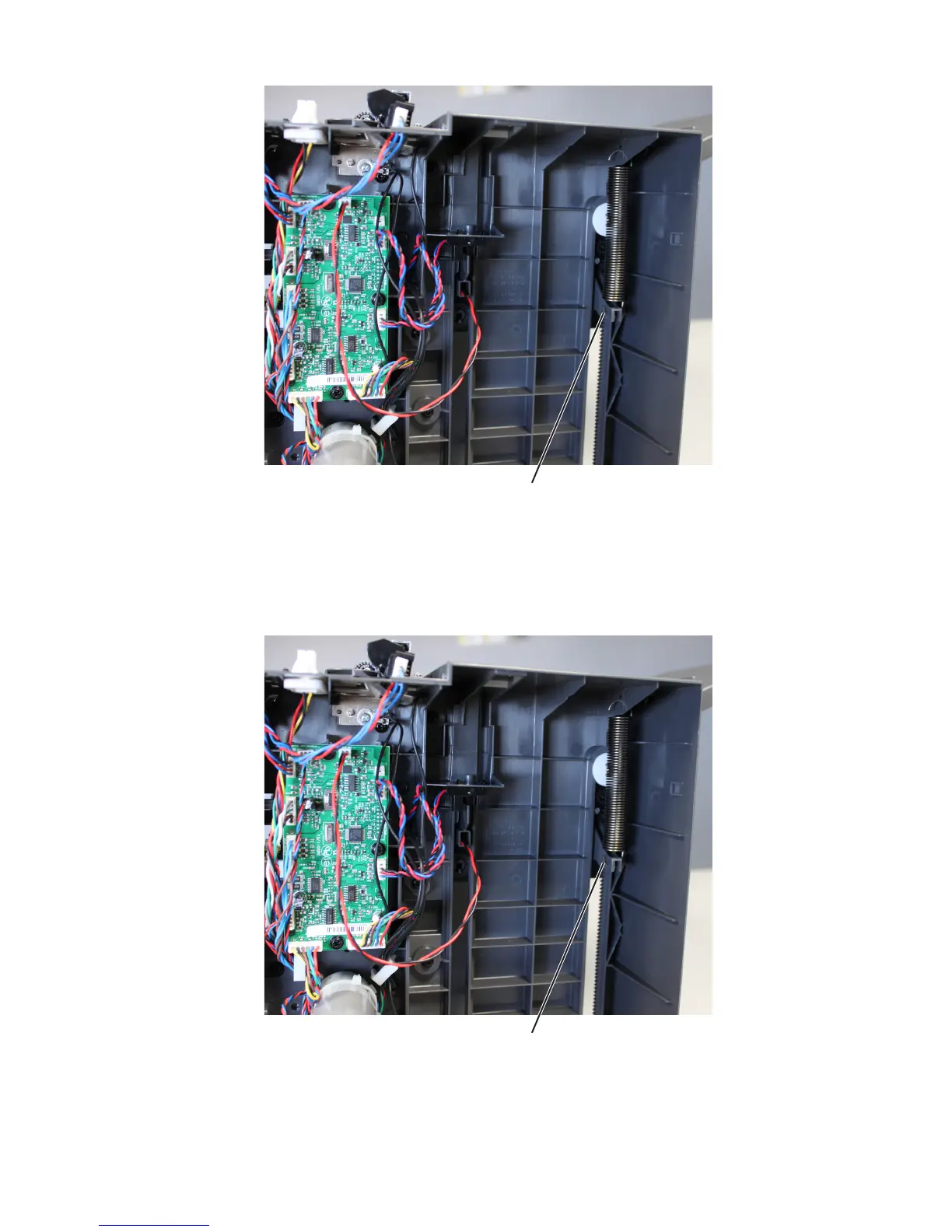

1 Remove the HCOE left cover. See “HCOE left cover removal” on page 589.
2 Unhook the spring (A) to release the HCOE tray.
A
3 Dislodge the E-clip (B) to release the pinion. Pull the pinion off its shaft, and remove.
Note: The pinion on the opposite side can be removed using the same method shown.
