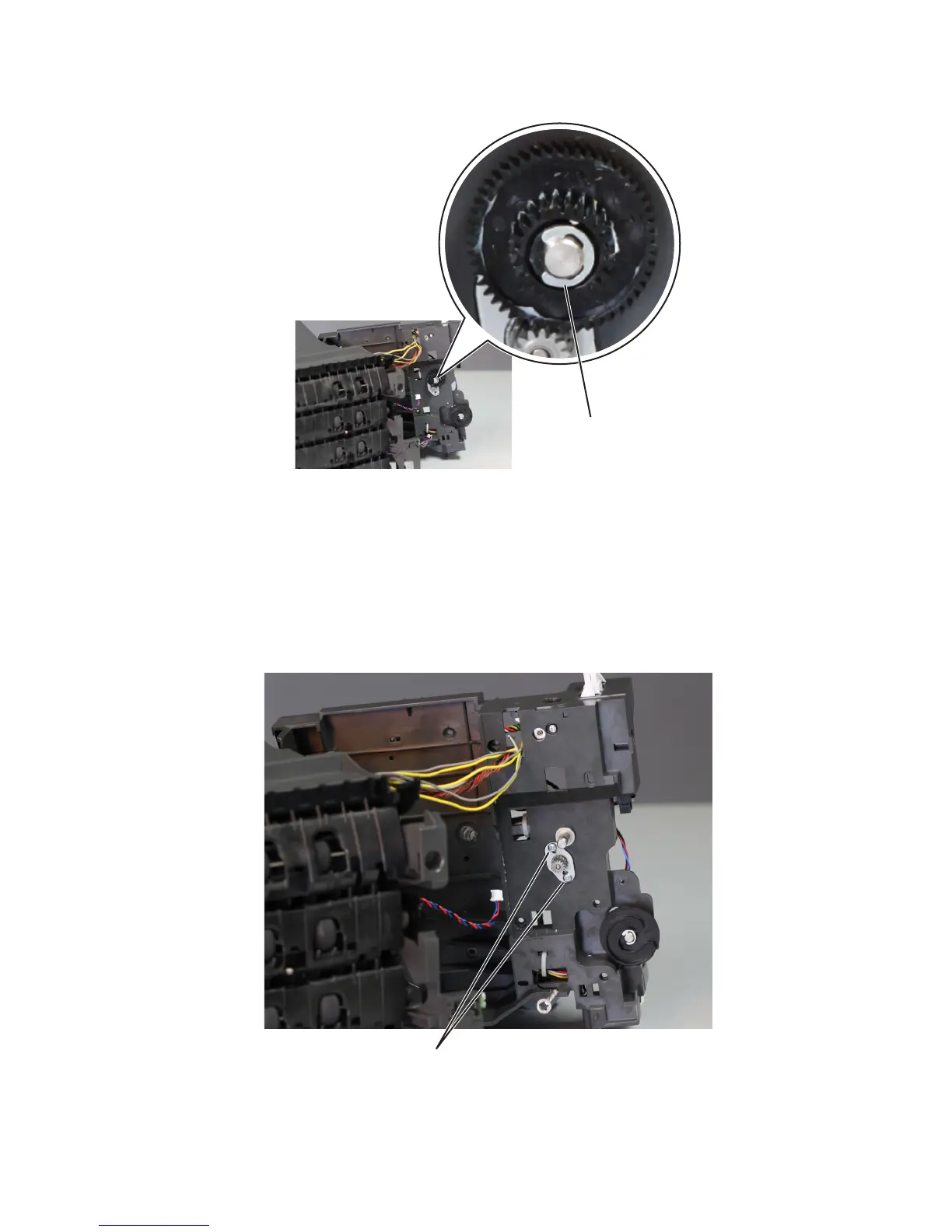

6 Remove the E-clip (D) to release the gear, and then pull the gear off the shaft.
D
Mailbox main motor removal
1 Remove the mailbox left cover. See “Mailbox left cover removal” on page 696.
2 Remove the mailbox rear door. See “Mailbox rear door removal” on page 689.
3 Remove the mailbox main drive gear. See “Mailbox main drive gear removal” on page 703.
4 Remove the two screws (A), and then pull the main motor off the left side, and remove it.
A
4063
Repair information
706
