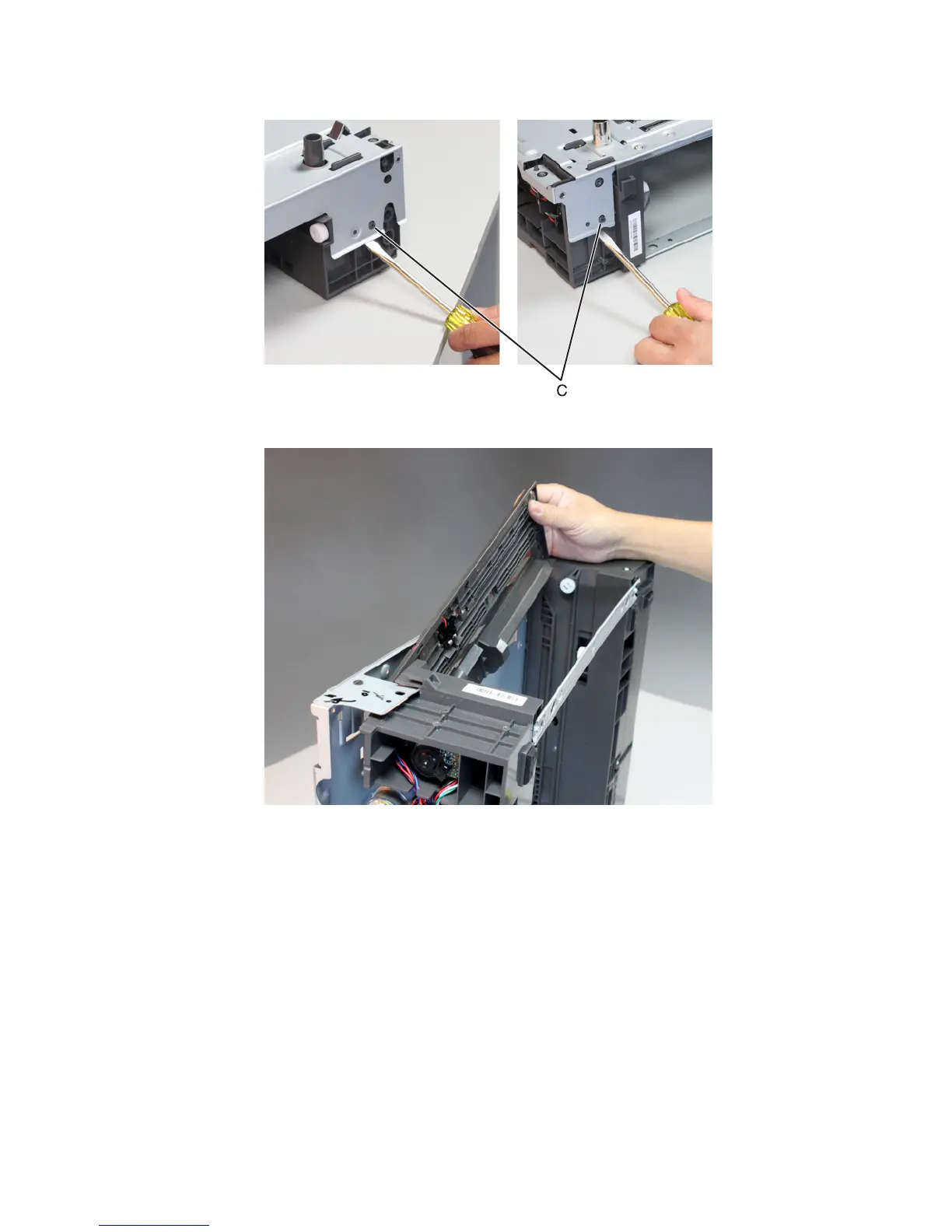

7 Pry the frame loose to release the pins (C).
8 To access the cable, lift the left side of the top plate, and pull the sensor assembly away from the drawer.
Note: Pay attention to the original routing of the cable.
9 Route the sensor cable off the drawer, and remove the sensor.
Sensor (drawer pass through) removal
1 Remove the media tray. See “250/550-sheet media tray and drawer assembly removal” on page 514.
2 Remove the rear cover. See “Drawer assembly rear cover removal” on page 517.
3 Remove the left cover. See “Drawer assembly left cover removal” on page 518.
4063
Repair information
527
