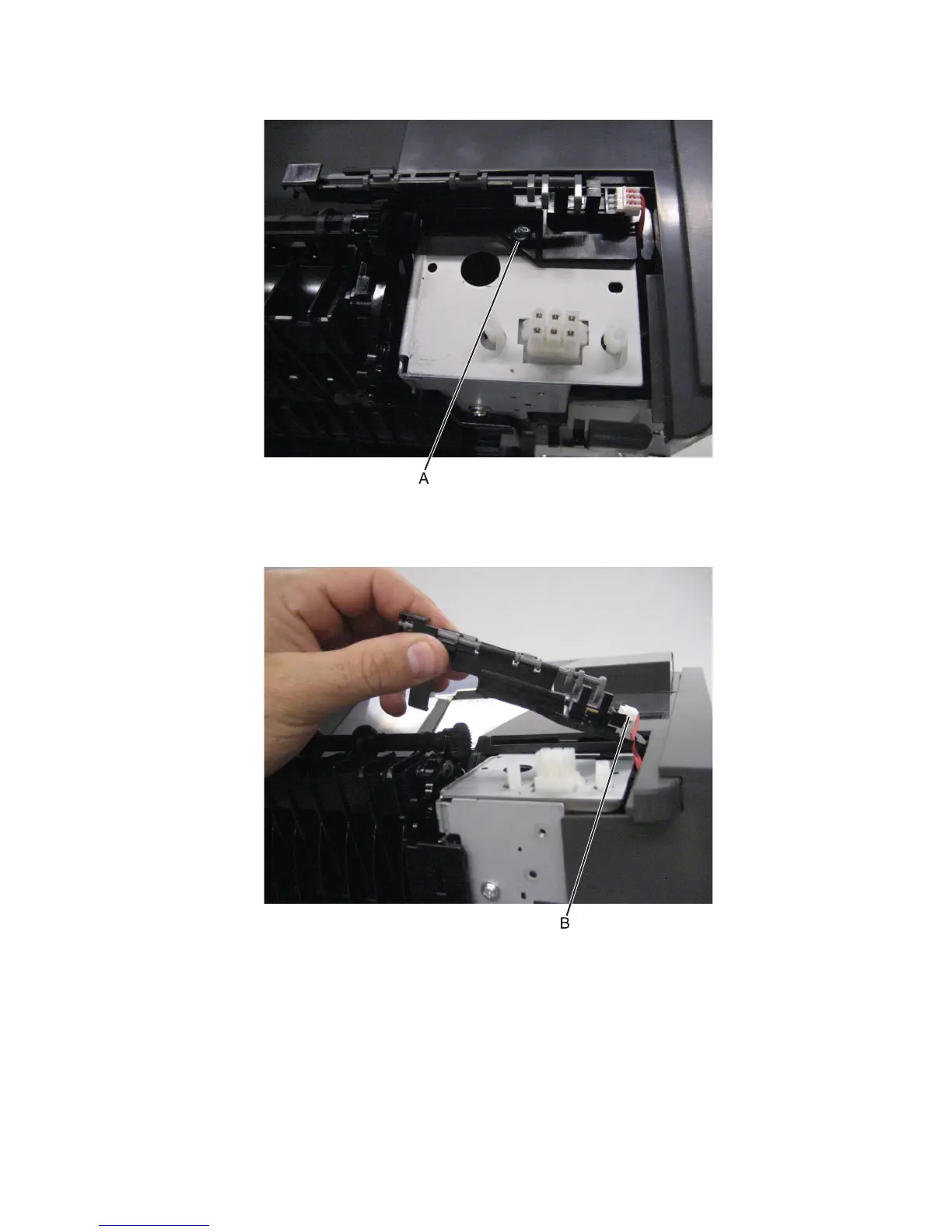

4 Remove the screw (A) securing the sensor (standard bin full) to the machine.
5 Remove the sensor (standard bin full).
6 Disconnect the cable (B).
Standard bin cover removal
1 Remove the left cover. See “Left cover removal” on page 489.
2 Remove the right cover. See “Right cover removal” on page 505.
3 Open the rear door.
4 Remove the top cover. See “Top cover removal” on page 466.
4063
Repair information
467
