Sensor (media pusher HP) removal
1 Remove the stapler left cover. See “Stapler left cover removal” on page 630.
2 Remove the stapler right cover. See “Stapler right cover removal” on page 624.
3 Remove the stapler diverter plunger assembly. See “Stapler diverter plunger assembly removal” on page 667.
4 Remove the stapler drive gear assembly. See “Stapler drive gear assembly removal” on page 668.
5 Remove the stapler feed roll. See “Stapler feed roll removal” on page 672.
6 Remove the stapler chute assembly. See “Stapler chute assembly removal” on page 674.

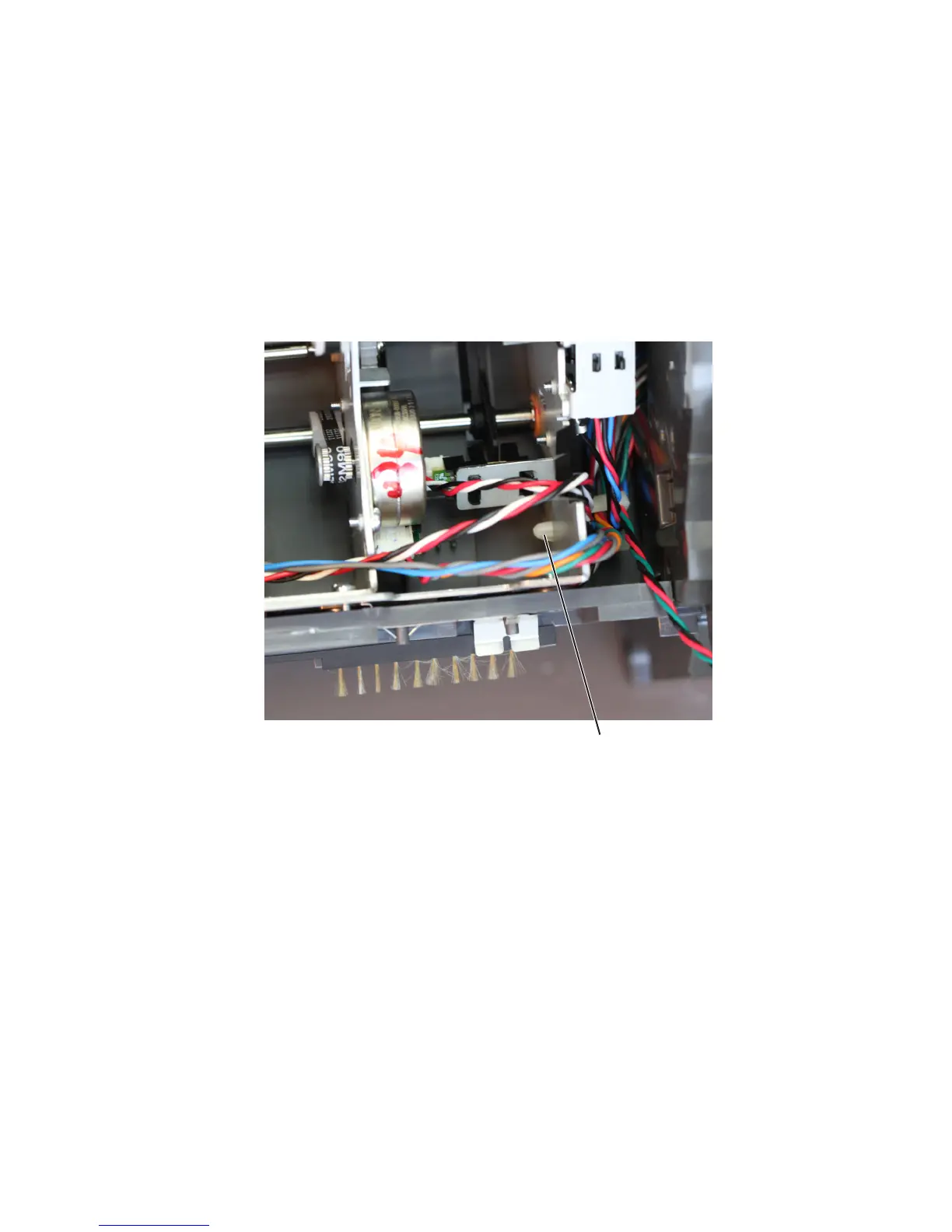

7 Release the cable holder (A) from the frame and remove it.
A
4063
Repair information
684
