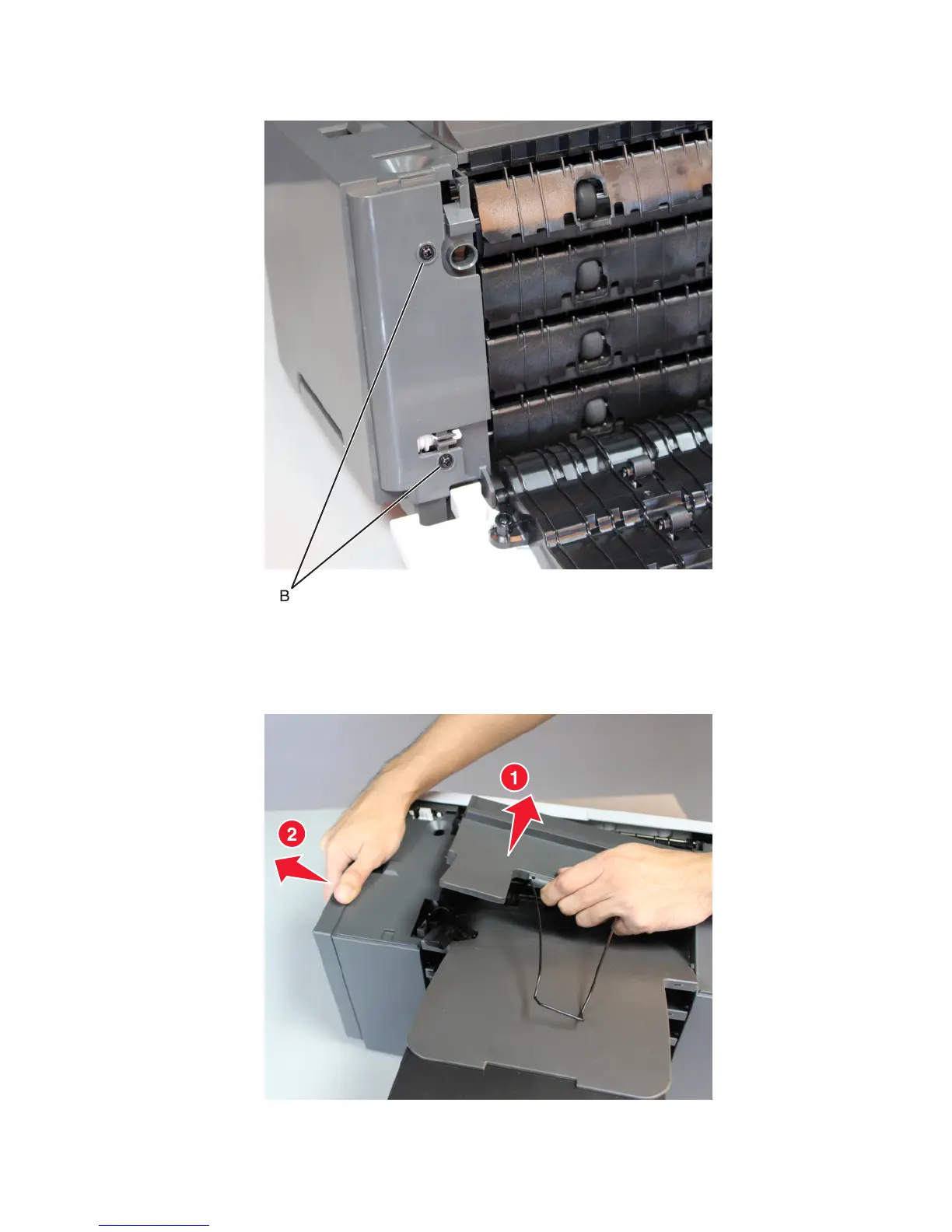

3 Remove the two screws (B) from the mailbox, then remove the right cover.
Mailbox top bin cover with bail removal
1 Slightly push the inner frame of the mailbox to the left to release the bin cover, and then lift the bin cover.
4063
Repair information
692
