Paddle drive motor removal
1
Remove the stapler left cove
r. See
“Stapler
left cove
r removal
” on page 6
30
.
2
Remove the st
apler right
cover. See
“Stapler
right cove
r remo
val” o
n page 6
24
.
3

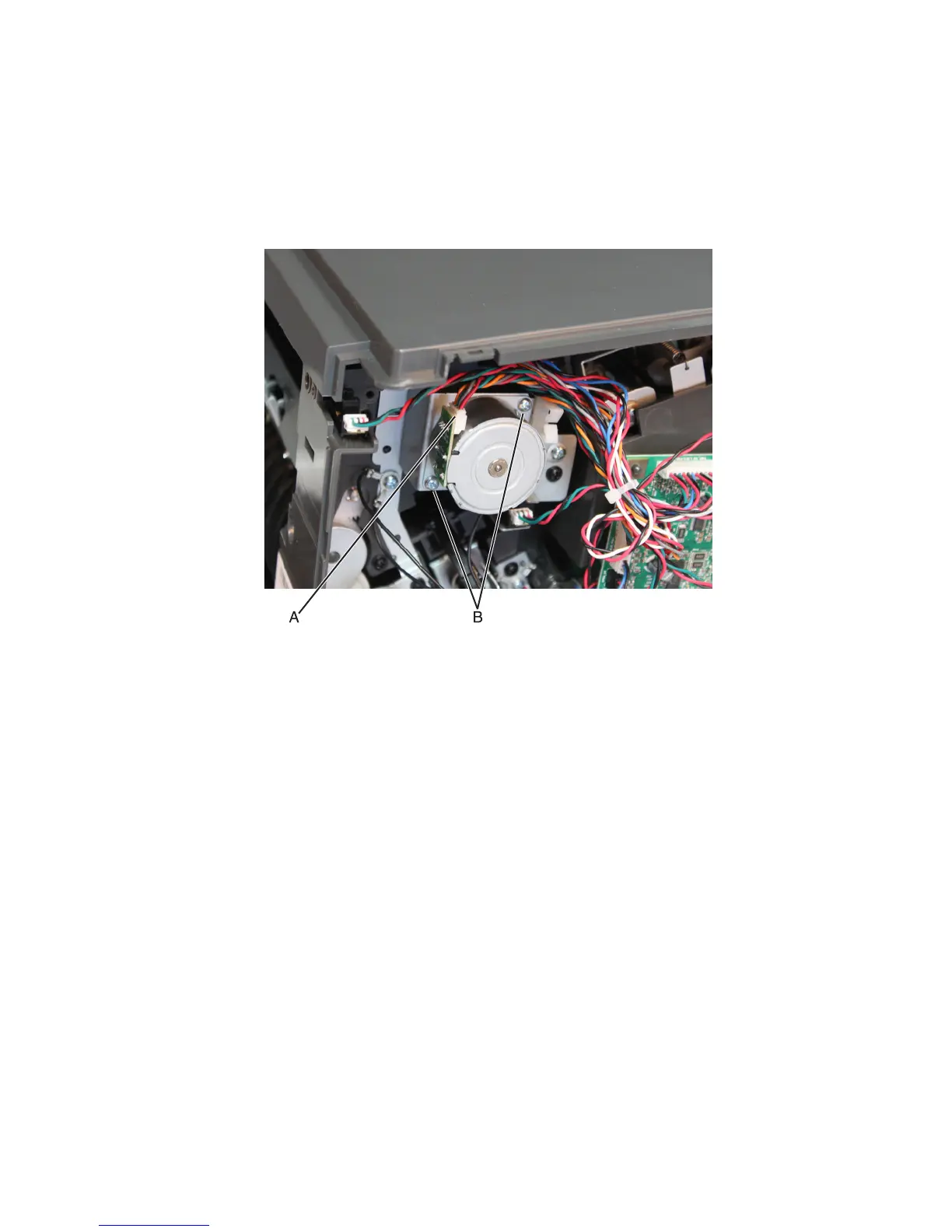

Disconnect the cable (A) fro
m the drive motor.
4
Remove the two
screws (B), then
remove the pad
dle drive motor.
4063
Rep
air
info
rma
tio
n
660
659
661
