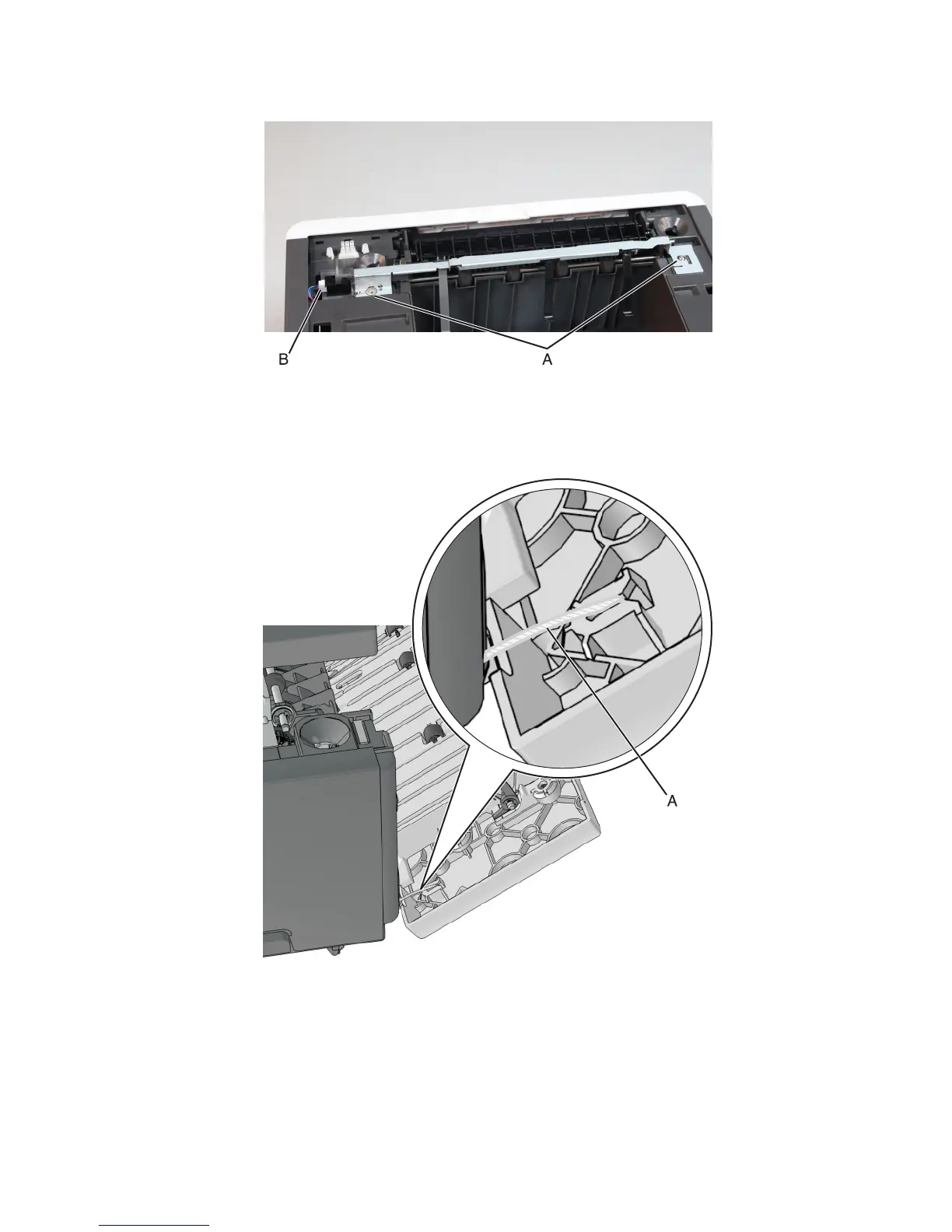

4 Disconnect the cable (B), and remove the sensor (media bin full) with flag.
Output expander right cover removal
1 Open the rear door, then detach the string (A) from the rear door.
Note: Fasten the string to the rear side to prevent it from recoiling into the interior of the expander.
4063
Repair information
558
