Drive
• “Main drive motor assembly” on page 897
• “Fuser drive motor assembly” on page 897
• “Toner add motor assembly” on page 897
• “Redrive motor assembly” on page 897

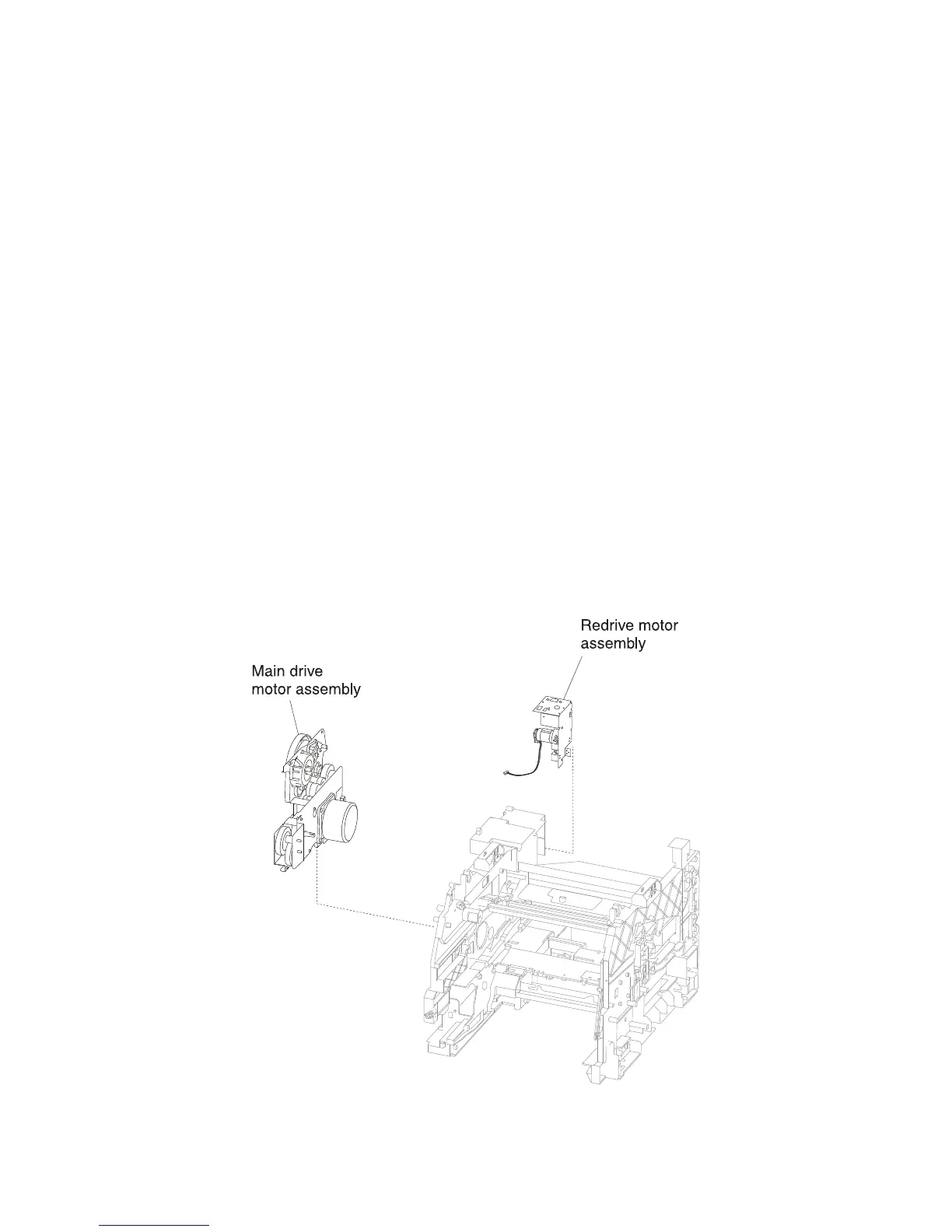

Main drive motor assembly
The main drive motor is a DC motor that drives the imaging unit, aligner, and MFP.
Fuser drive motor assembly
The fuser drive motor is a DC motor that drives the fuser.
Toner add motor assembly
The toner add motor is a DC motor that drives the toner cartridge in order to provide new toner.
Redrive motor assembly
The redrive motor assembly is a DC motor that drives the redrive assembly that transports the media into the duplex
path entrance, standard bin, or output option.
4063
Appendix C: Theory of operation
897
