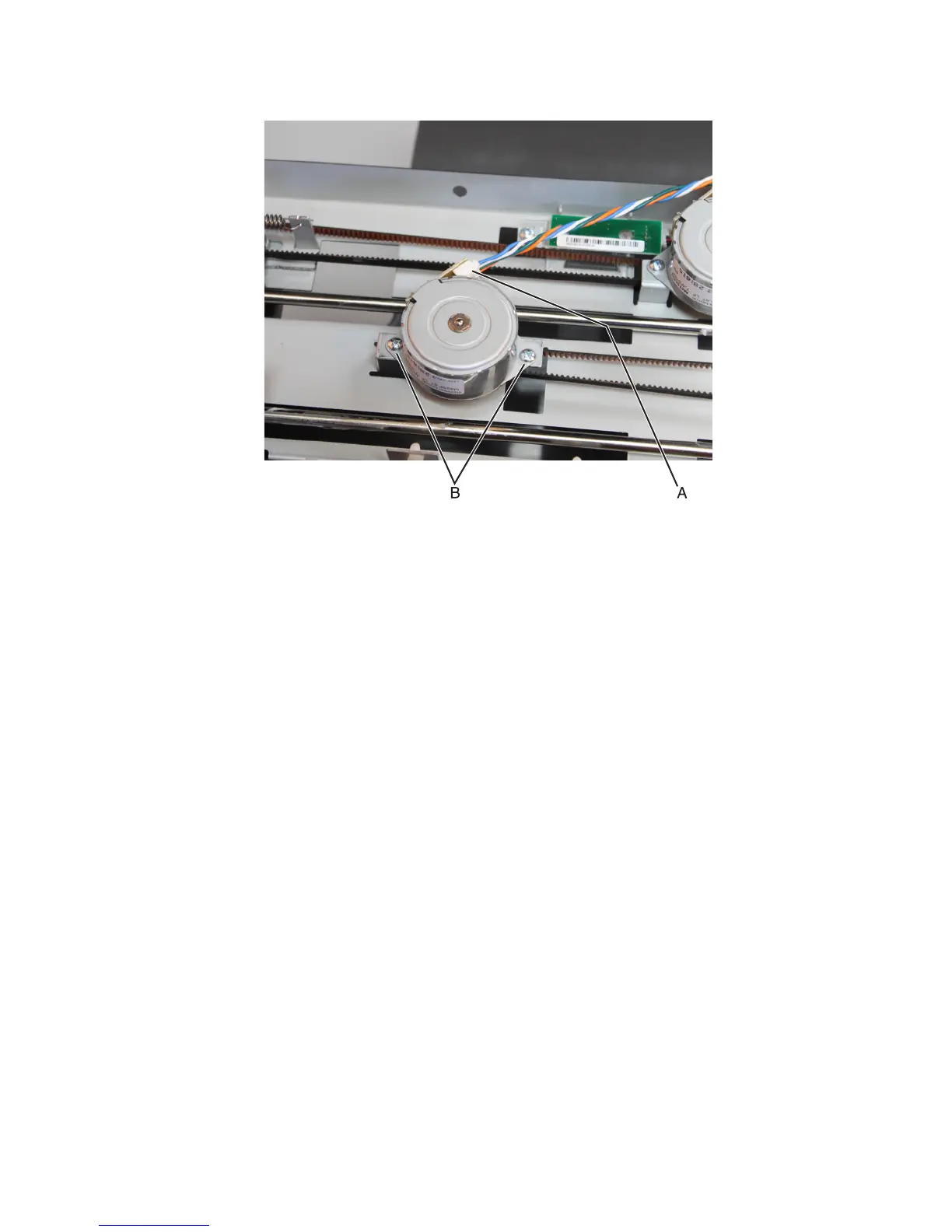

5 Remove the two screws (B), then remove the motor.
Tamper drive belt removal
1 Remove the finisher left cover. See “Staple, hole punch left cover removal” on page 739.
2 Remove the finisher right cover. See “Staple, hole punch right cover removal” on page 741.
3 Remove the finisher top cover. See “Staple, hole punch top cover removal” on page 762.
4 Remove the tamper motor engaged to the belt. See “Tamper motor (right) removal” on page 769 or “Tamper
motor (left) removal” on page 770.
4063
Repair information
771
