Stapler diverter motor removal
1 Remove the stapler left cover. See “Stapler left cover removal” on page 630.

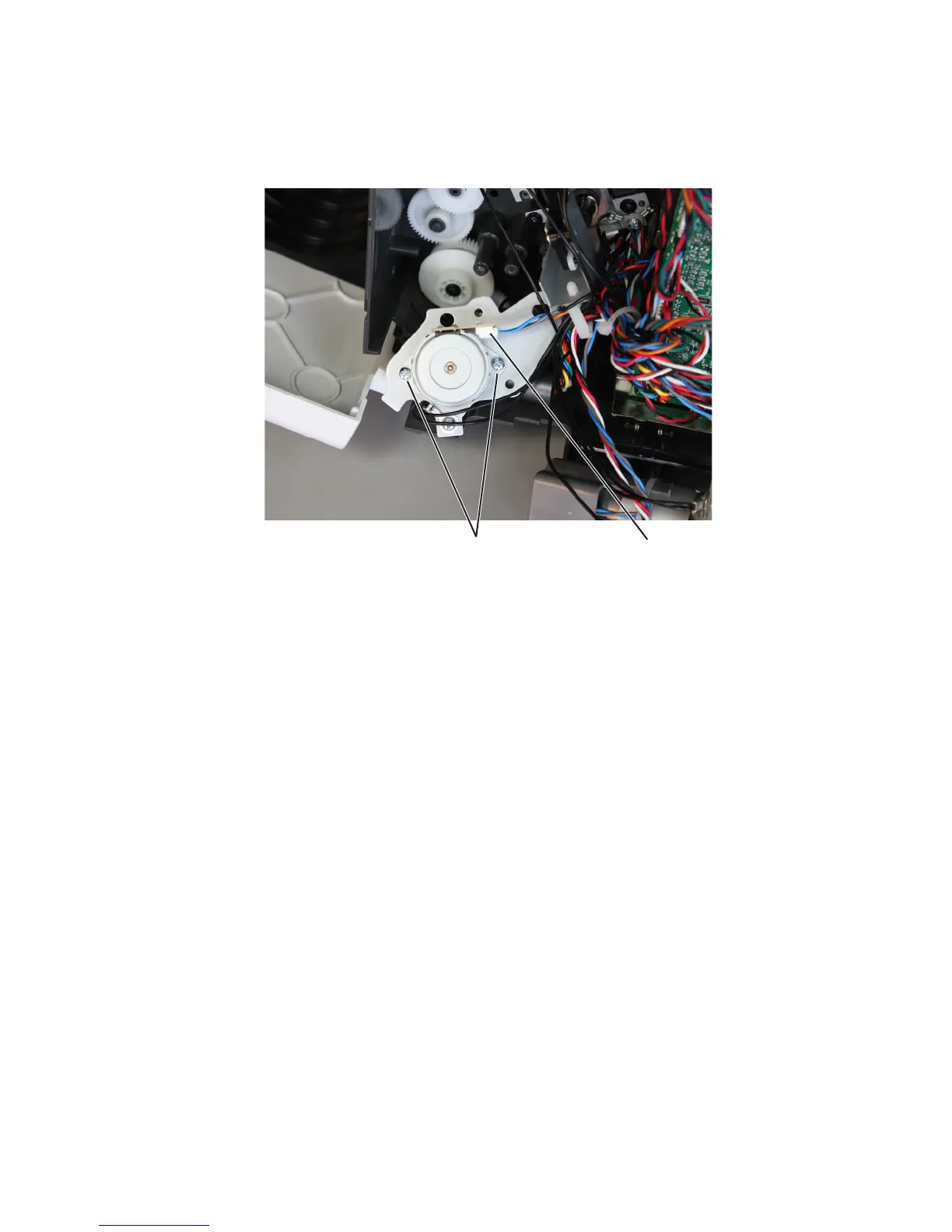

2 Disconnect the motor cable (A), and then remove the two screws (B).
BA
3 Remove the motor from the bracket.
4063
