Sensor (paddle motor HP) removal
1
Remove the finisher
left cover. See
“Sta
ple, hole
punch left
cover re
moval”
on page 7
39
.
2

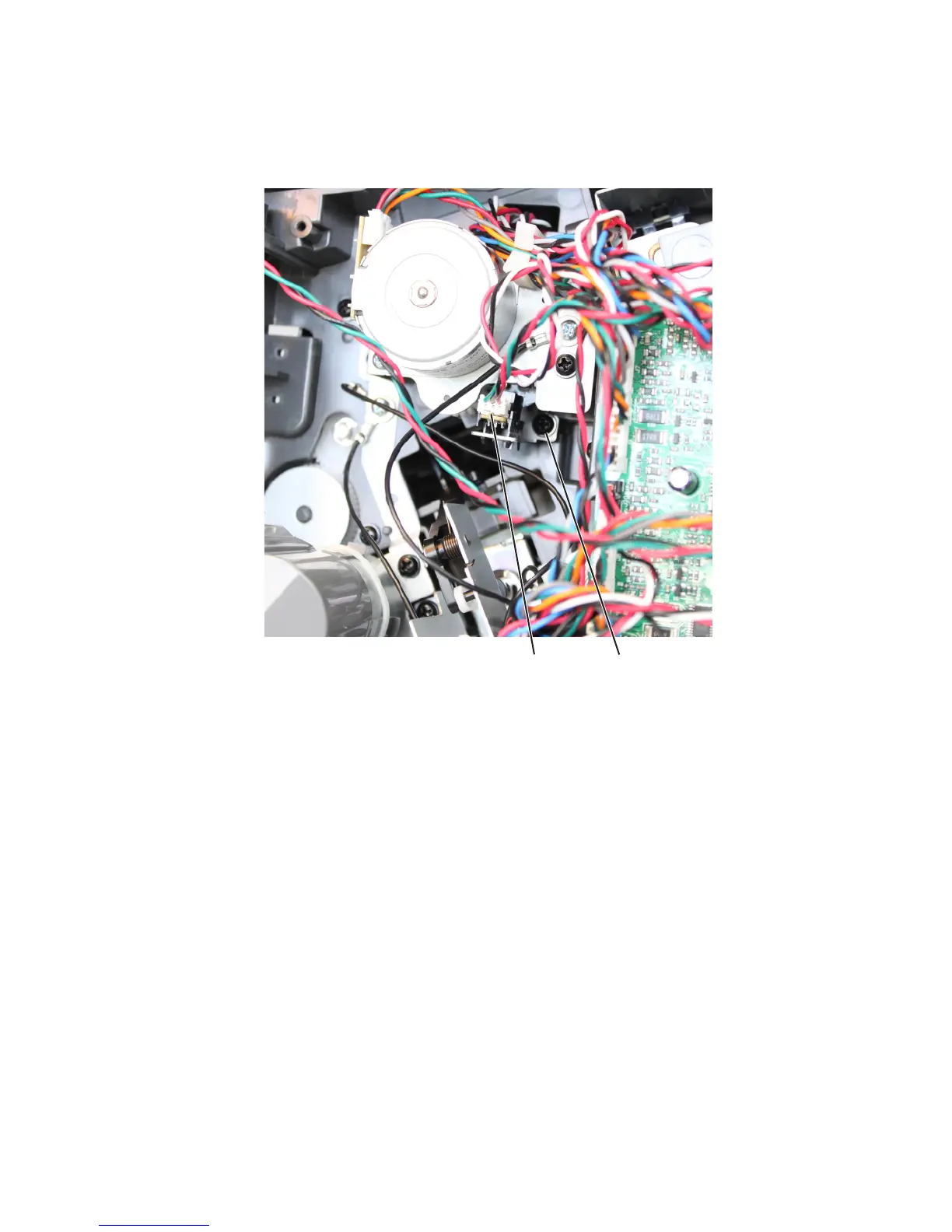

Disconnect the cable (A) from t
he sensor. Remove the screw (B), and then
remove the sensor b
racket.
A
B
3
Release the latches s
ecuring the sensor
to the bracket, and then remove
the sensor.
4063
Rep
air
info
rma
tio
n
752
751
753
