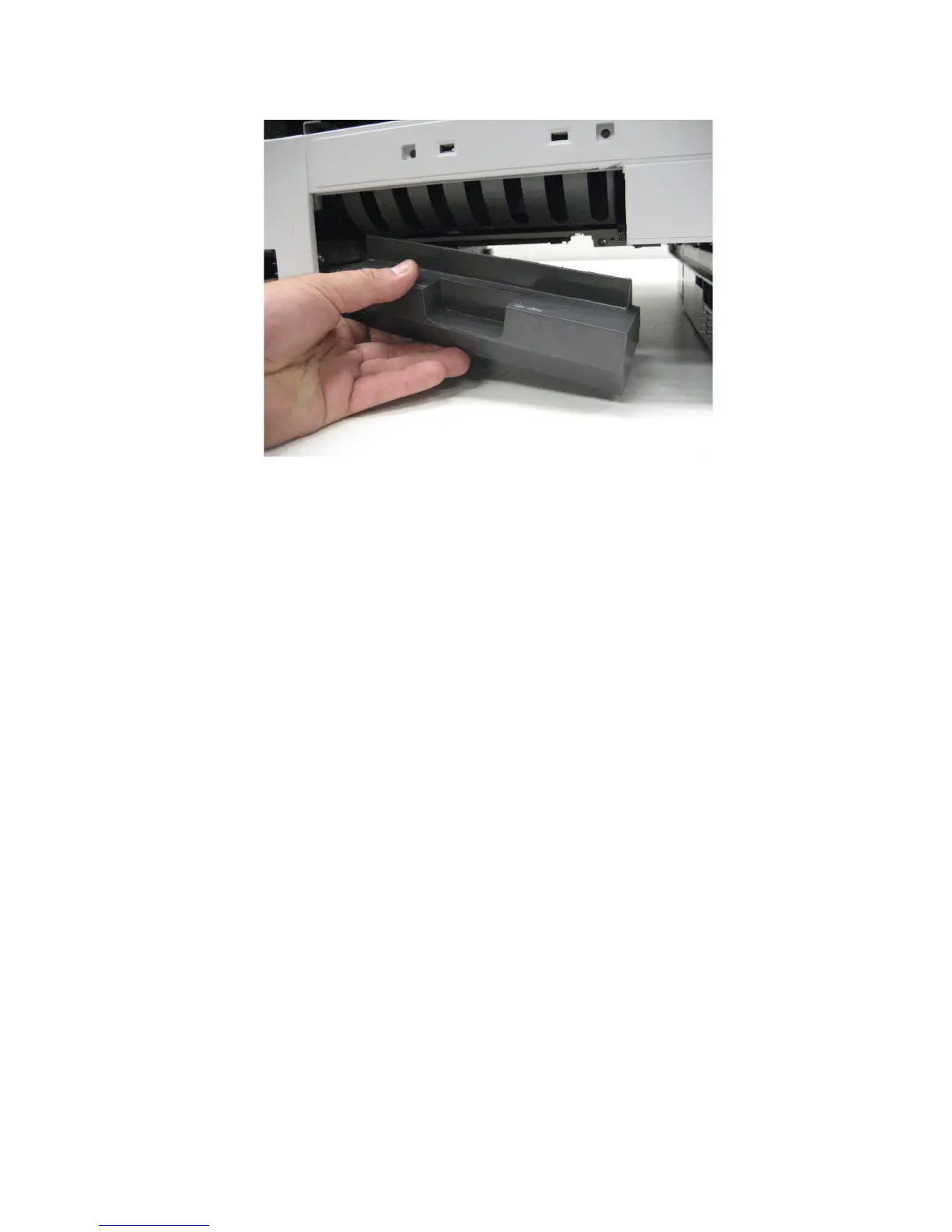

3 Gently remove the duplex rear flap.
Left frame extension removal
1 Remove the rear door. See “Rear door removal” on page 456.
2 Remove the controller board access cover. See “Controller board access cover removal” on page 493.
3 Remove the rear lower cover. See “Rear lower cover removal” on page 454.
4 Remove the top cover. See “Top cover removal” on page 466.
5 Remove the left cover. See “Left cover removal” on page 489.
6 Gently place the printer on its right side.
4063
Repair information
477
