Sensor (control panel interlock) removal
1 Remove the left cover. See “Left cover removal” on page 489.

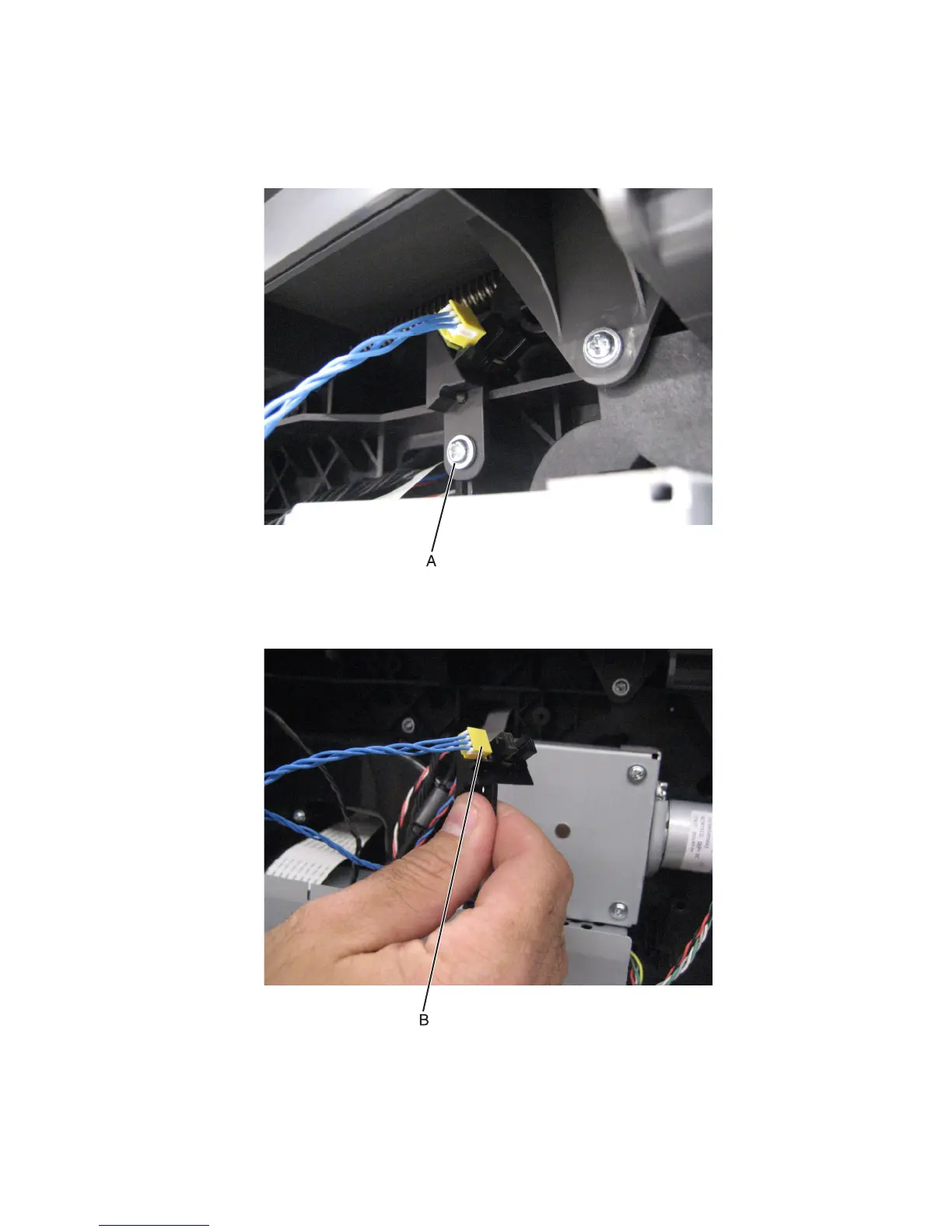

2 Remove the screw (A) securing the bracket to the machine.
3 Remove the bracket from the machine.
4 Disconnect the cable (B) from the sensor (control panel interlock), and remove it.
4063
Repair information
501
