HCOE top diverter spring removal
1 Remove the HCOE rear door. See “HCOE rear door removal” on page 585.
2 Remove the HCOE left cover. See “HCOE left cover removal” on page 589.

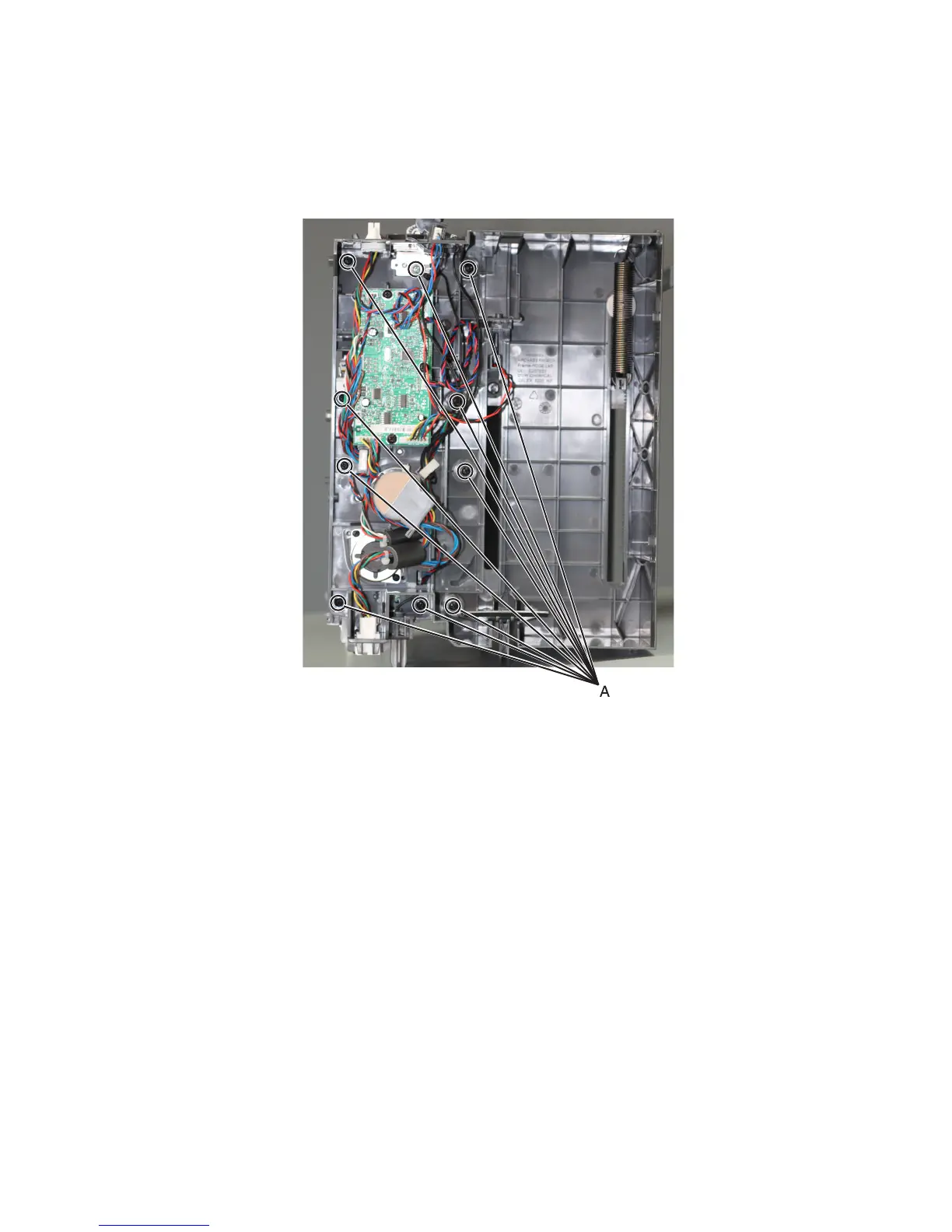

3 Remove the 10 screws (A) from the inner left frame.
4 Slightly pull away the frame to access the parts underneath it.
4063
Repair information
611
