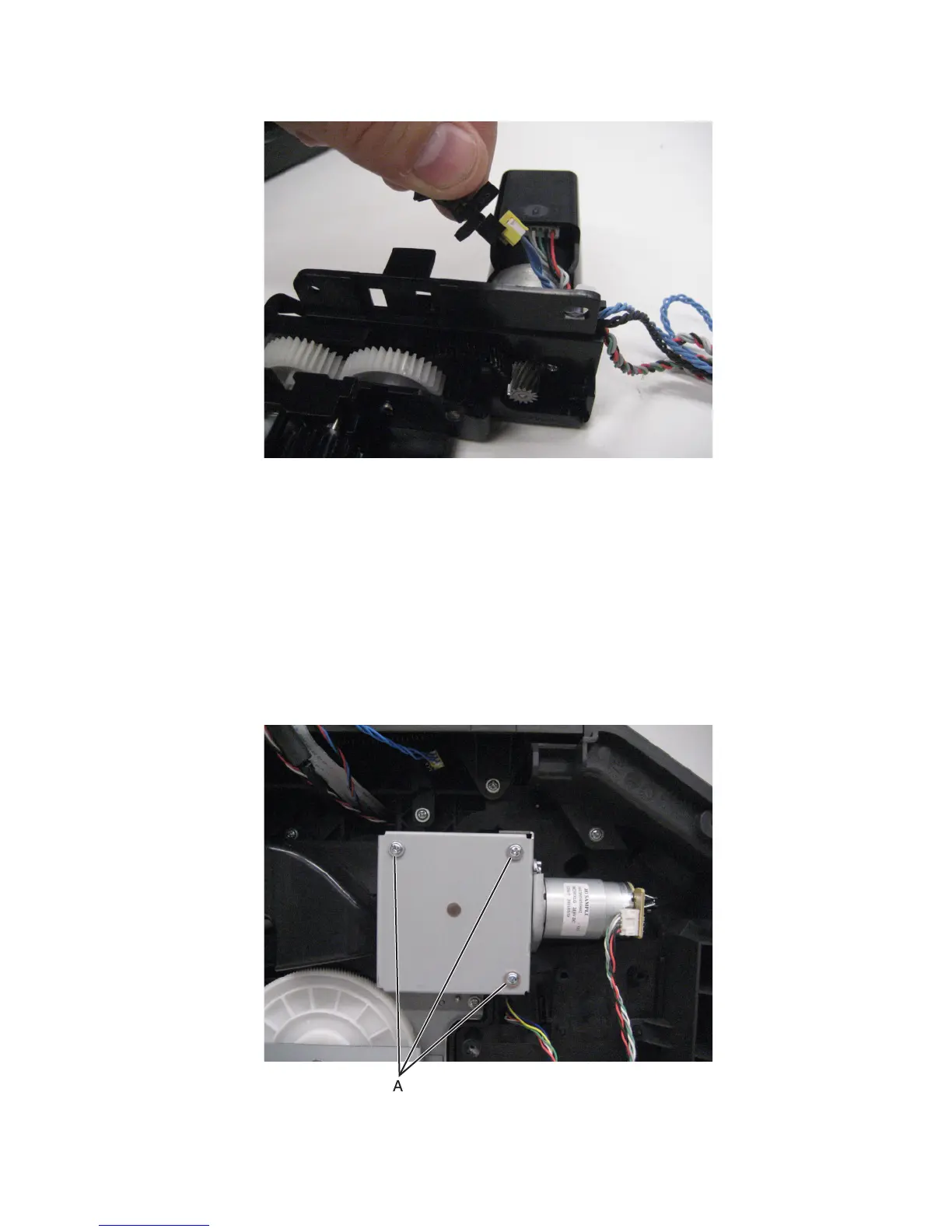

10 Disconnect the cable.
Toner add motor removal
1 Remove the right cover. See “Right cover removal” on page 505.
2 Remove the rear lower cover. See “Rear lower cover removal” on page 454.
3 Remove the LVPS. See “LVPS removal” on page 511.
4 Remove the left cover. See “Left cover removal” on page 489.
5 Remove the PCBA housing. See “PCBA housing removal” on page 500.
6 Remove the three screws (A) securing the toner add motor to the machine.
4063
Repair information
503
