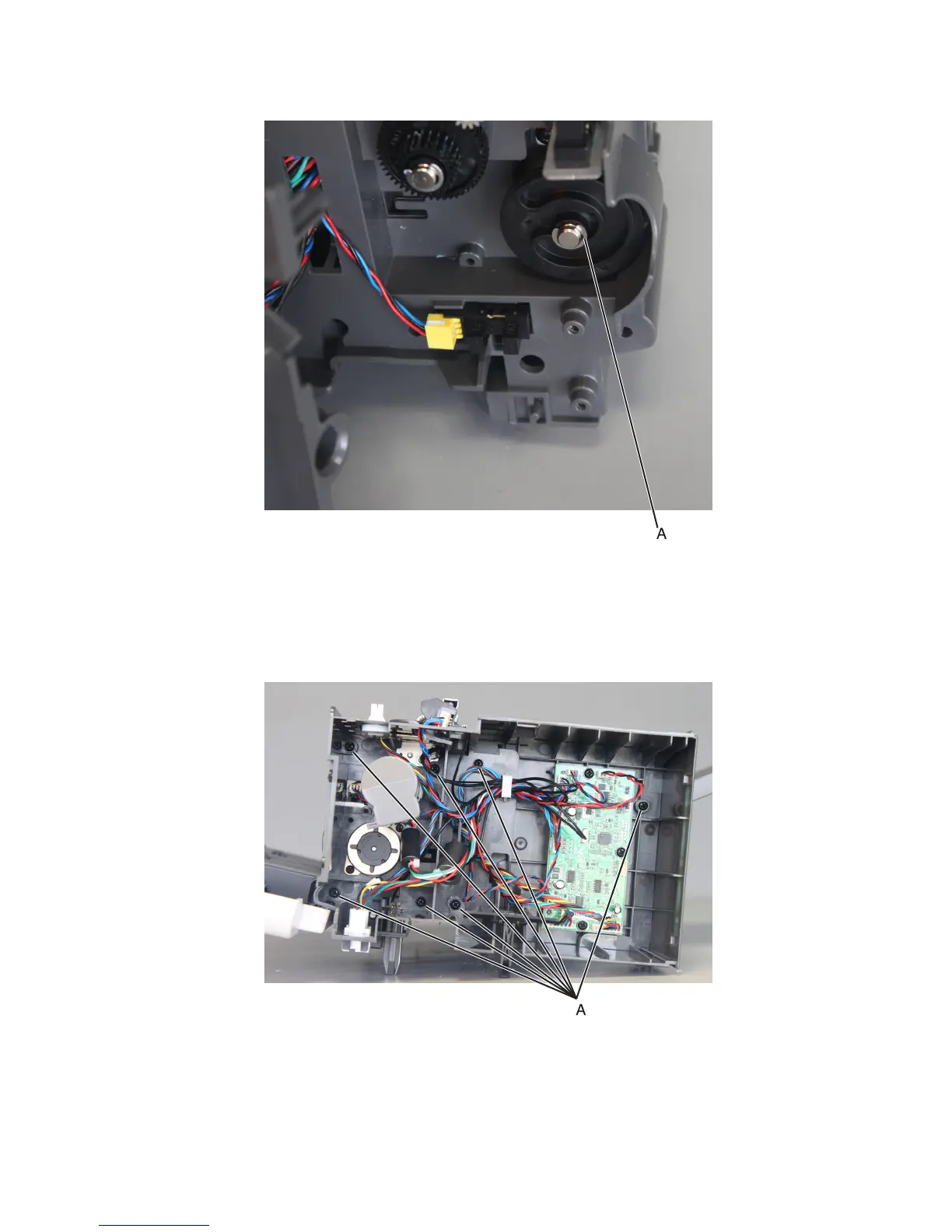

3 Remove the E-clip (A), and then remove the cam.
Output expander drive gear removal
1 Remove the output expander left cover. See “Output expander left cover removal” on page 560.
2 Remove the seven screws (A) from the frame.
4063
Repair information
570
