Lexmark MS711 Service Manual

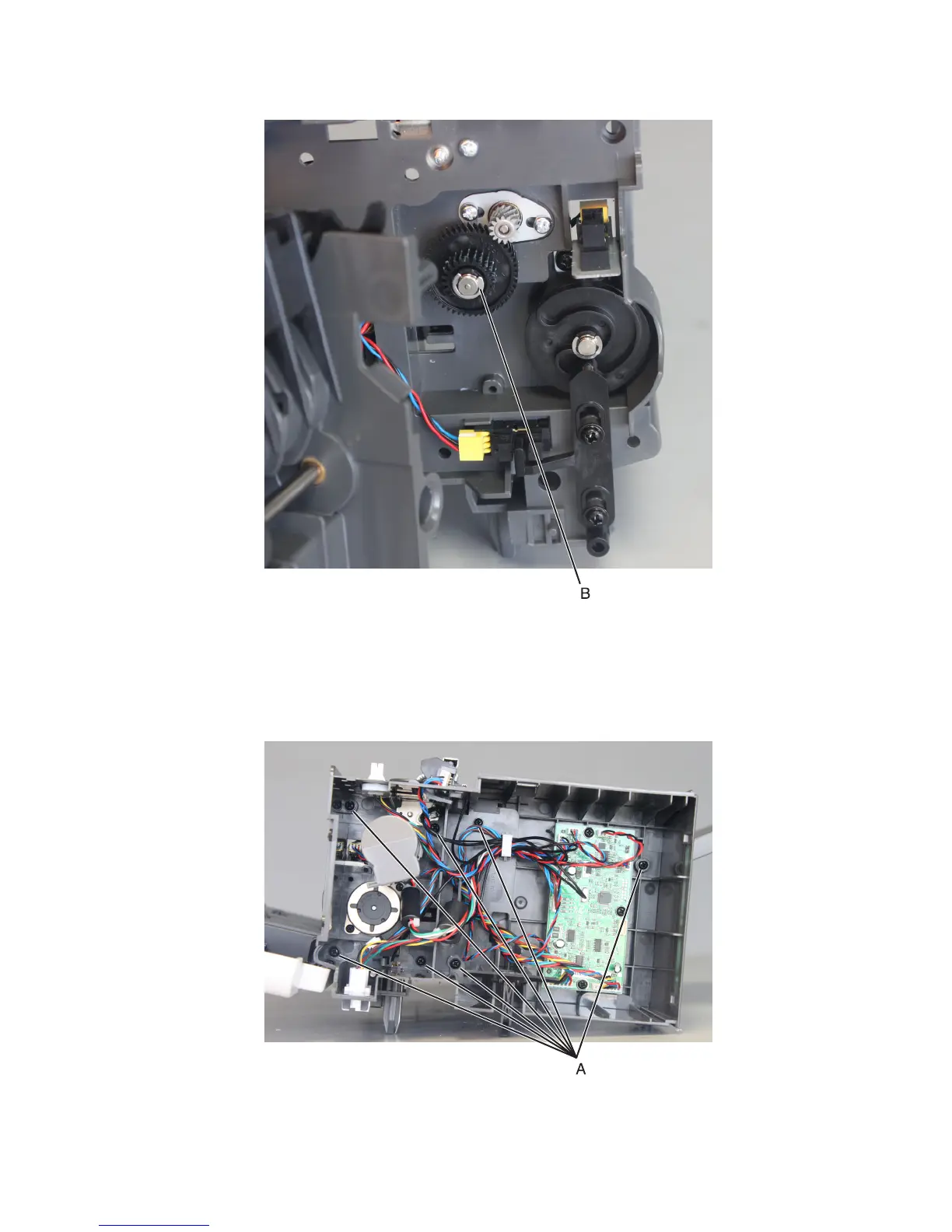

3 Pull away the frame to access the parts underneath. Remove the E-clip (B), and pull the gear off its shaft.
Output expander main motor removal
1 Remove the output expander left cover. See “Output expander left cover removal” on page 560.
2 Remove the seven screws (A) from the frame.
4063
Repair information
571
