HCOE lower interface cable removal

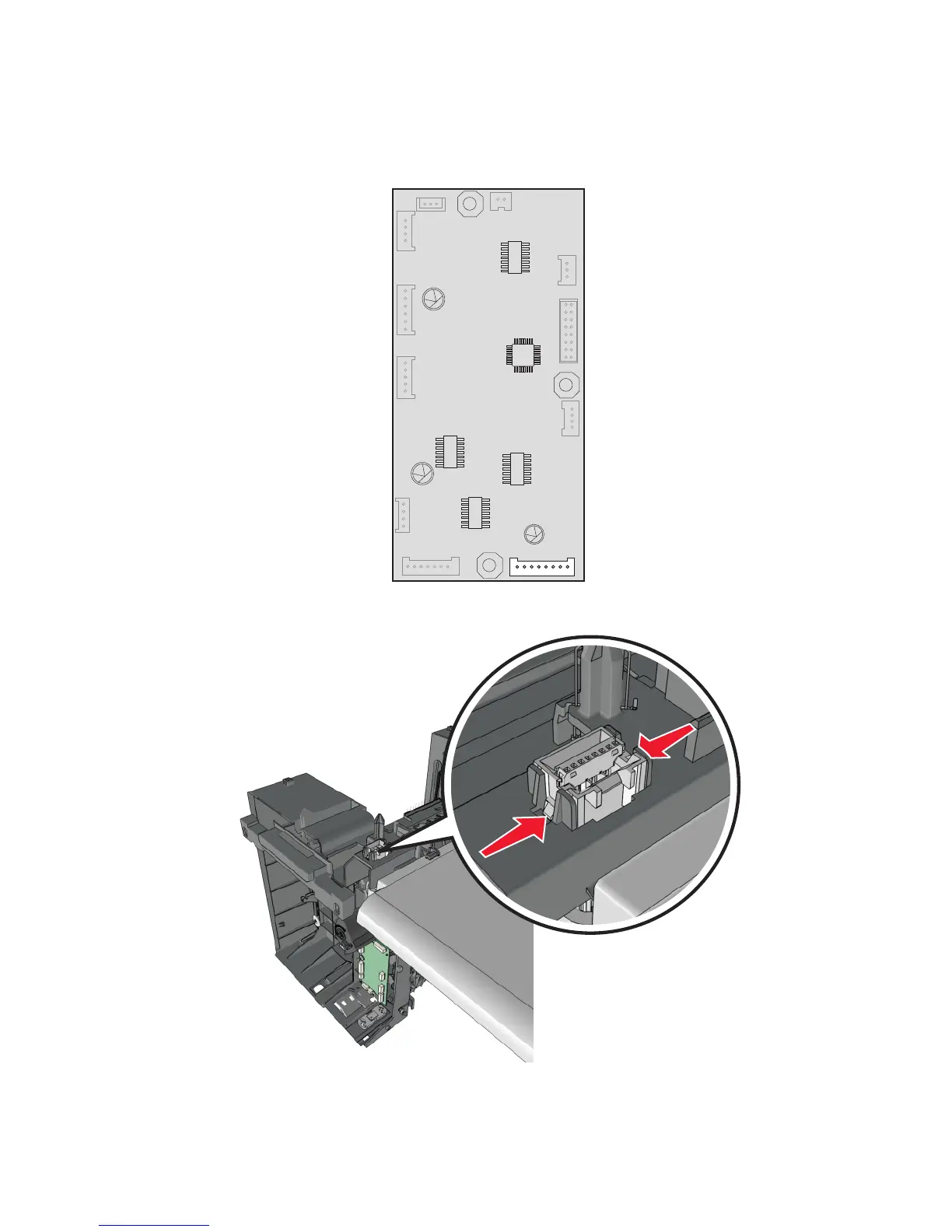

1 Remove the HCOE left cover. See “HCOE left cover removal” on page 589.
2 Disconnect the lower interface cable J1 from the controller PCBA.
3 Push inward to release the latches, then push the connector out of its slot.
4 Remove the lower interface cable.
4063
Repair information
593
