Page 60 of 237

Version: 5.1.6 – June 4

, 2019

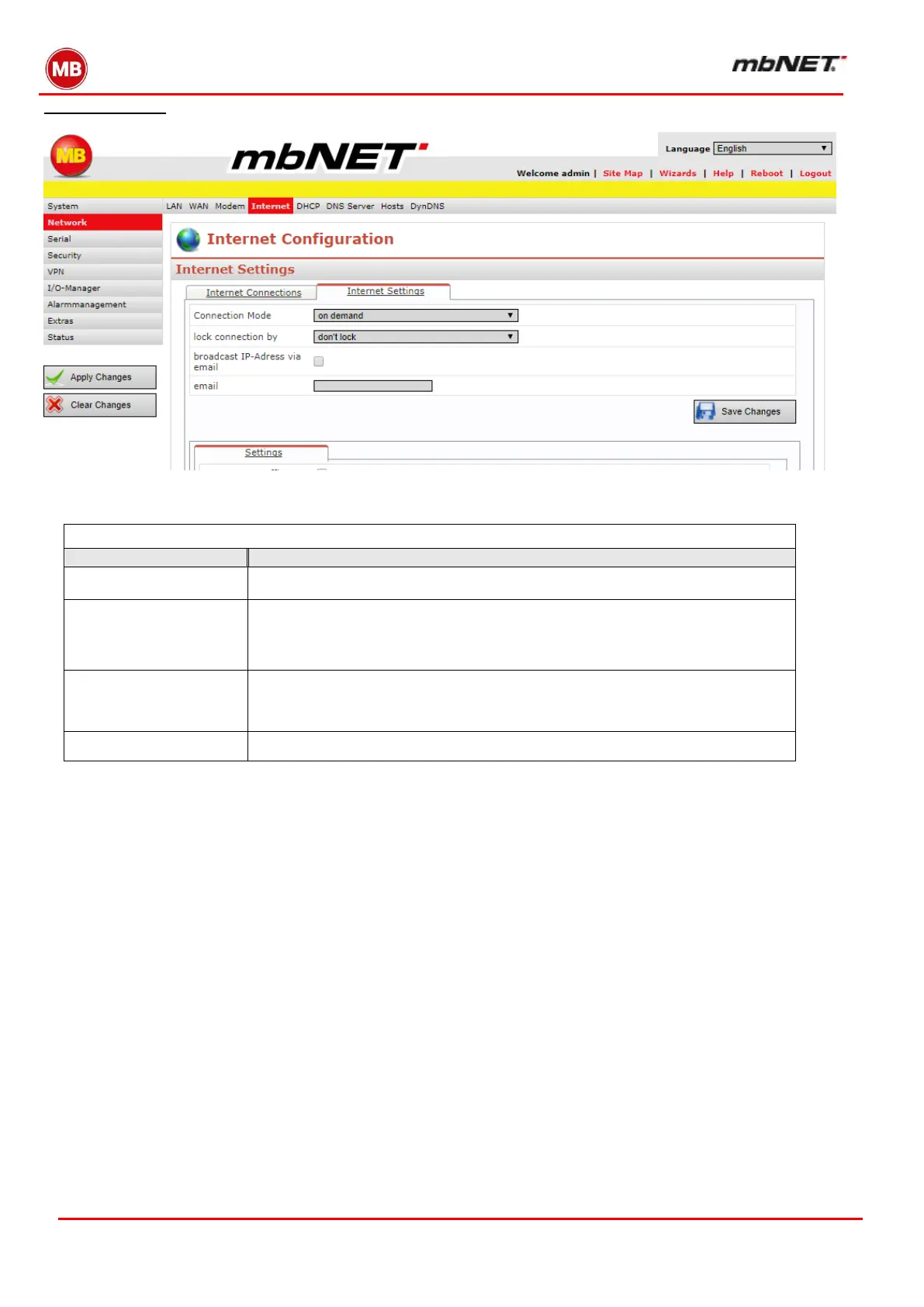

Internet Settings

Label

Description

Connection Mode

Select “keep connection” here.

lock connection by

Using the drop-down field you can decide whether the Internet connection

should be closed when one of the inputs receives a signal (internally-gener-

ated, between 10 and 30V).

broadcast IP-Adress

via email

Enable this setting.

Select whether the IP address should be sent to the

email address listed.

Enter the email address to which the IP address is to be sent here.
