Direct Fuel Injection
90-8M0050731 MAY 2011 Page 3B-55

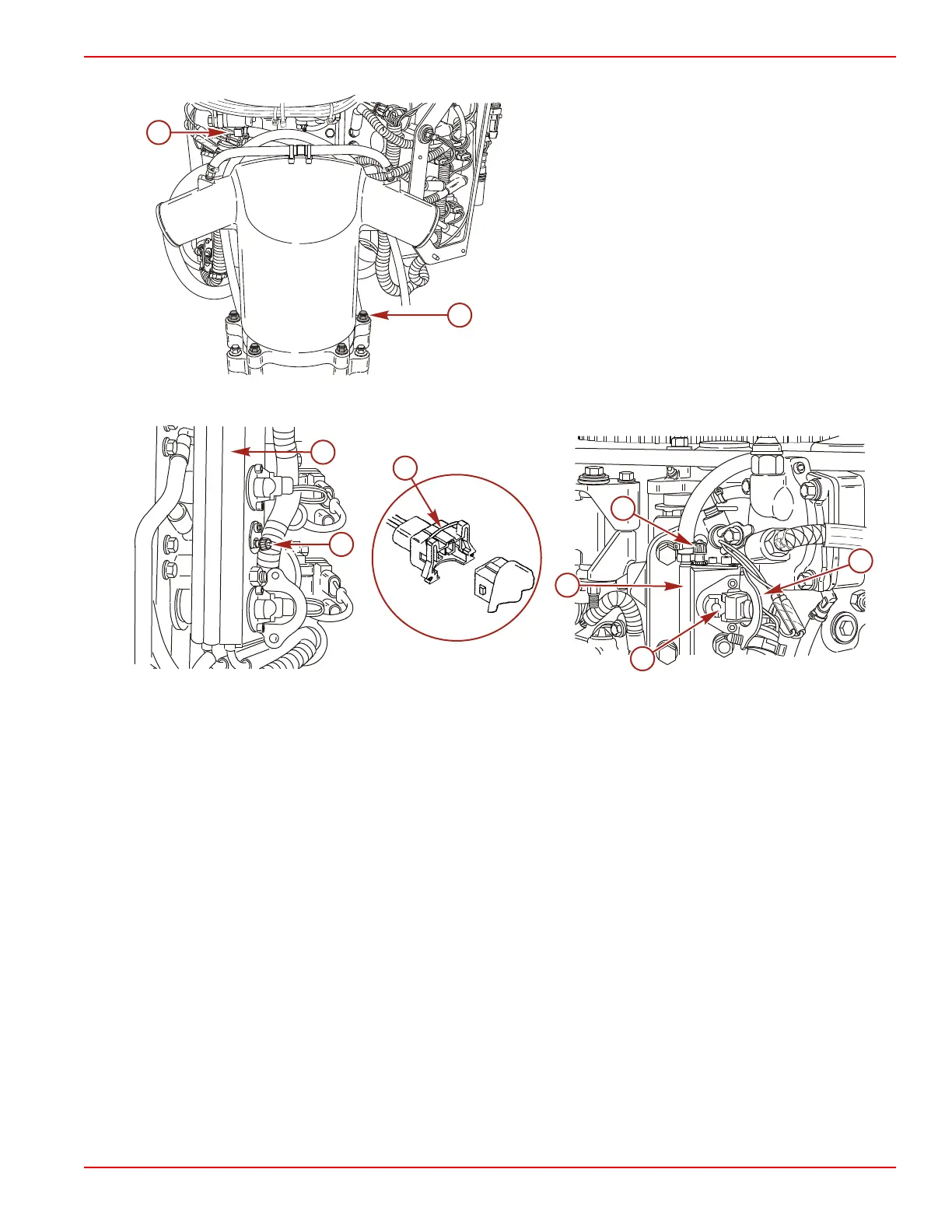

4. Remove the six nuts securing the expansion chamber and lay the chamber off to one side.
a - Coolant hose
b - Nut (6)
5. Remove the fuel injector harness from each fuel injector by compressing the spring clip with a flat tip screwdriver and pulling
on the connector.
a - Port fuel rail
b - Air pressure test valve
c - Fuel pressure test valve
d - Fuel injector
e - Harness connector (hidden)
f - Spring clip
6. Cut the cable tie securing the compressor water inlet hose to the fuel rail. Remove the water inlet hose.
