12 Lead Interpretation ECG – Arrhythmia
9 - 34 V Series Operating Instructions
• If the patient gender is not entered, the default patient configuration is Male.
• If the patient race is not entered, the default patient configuration is
Caucasian.
• If the patient age is not entered, the default patient configuration is 50 years old.
• If the patient age is not entered, and current lead type is V4R, the default patient configuration is
One (1) Day.
9.9.1.3 Configuring 12 Lead Setup
1. Select the Procedures tab from the Navigation Area.
2. Select the 12 Lead button.
3. Select the Setup tab (as shown in FIGURE 9-27).

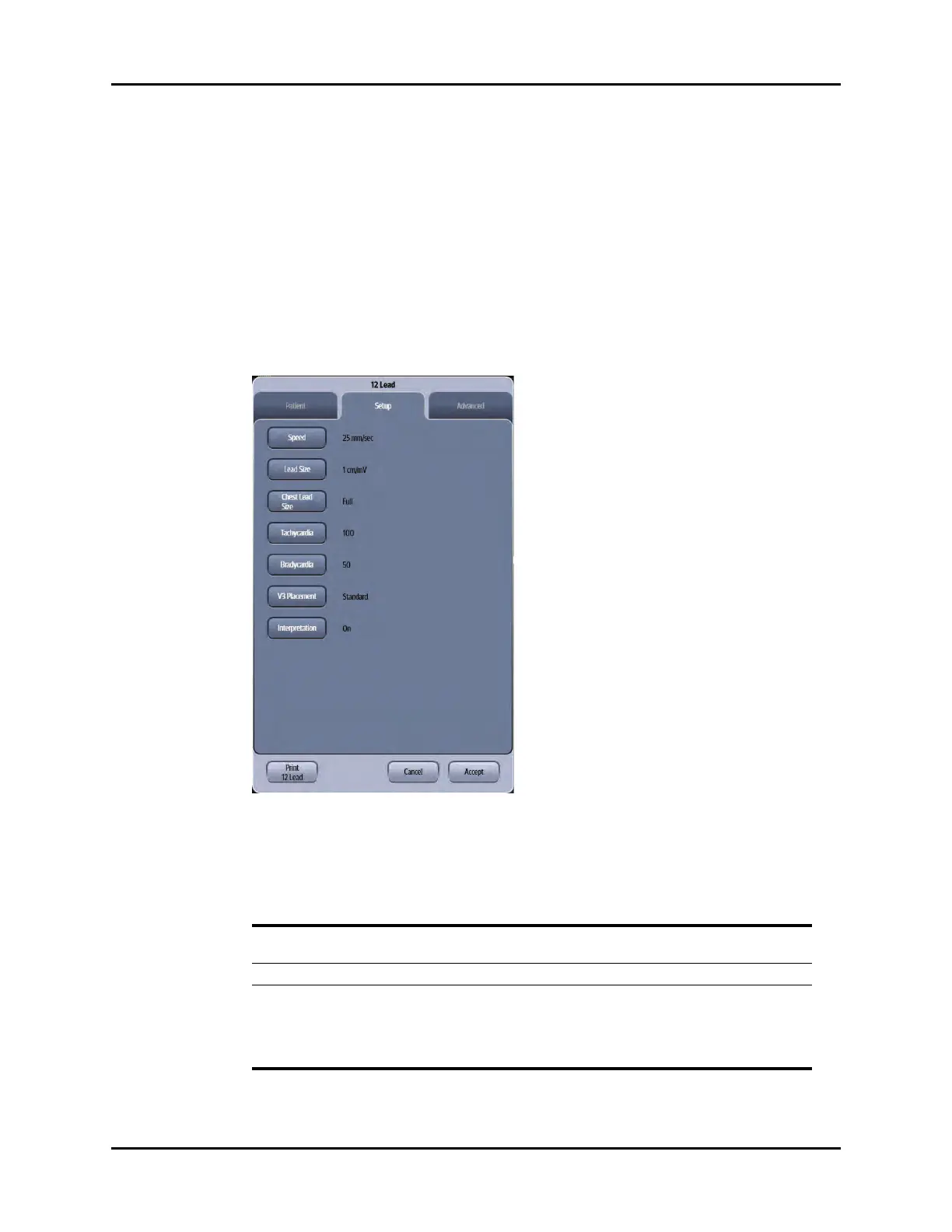

FIGURE 9-27 Example 12 Lead Dialog (Setup Tab)
4. Select the buttons described in TABLE 9-6 to configure the tab
.
TABLE 9-6
BUTTON DESCRIPTION CHOICES*
Speed Configure the 12 Lead ECG sweep
speed.
25 mm/sec and 50 mm/sec
Lead Size Configure the 12 Lead ECG gain. 0.5 cm/mV, 1 cm/mV, and 2 cm/mV
Chest Lead
Size
Configure the ECG gain for the chest
lead.
Full: the gain is consistent with the lead
size.
Half: the gain is a half of the lead size.
Full and Half
*The factory default configuration settings are in bold.
