3.4.4.2 Operation using softkeys

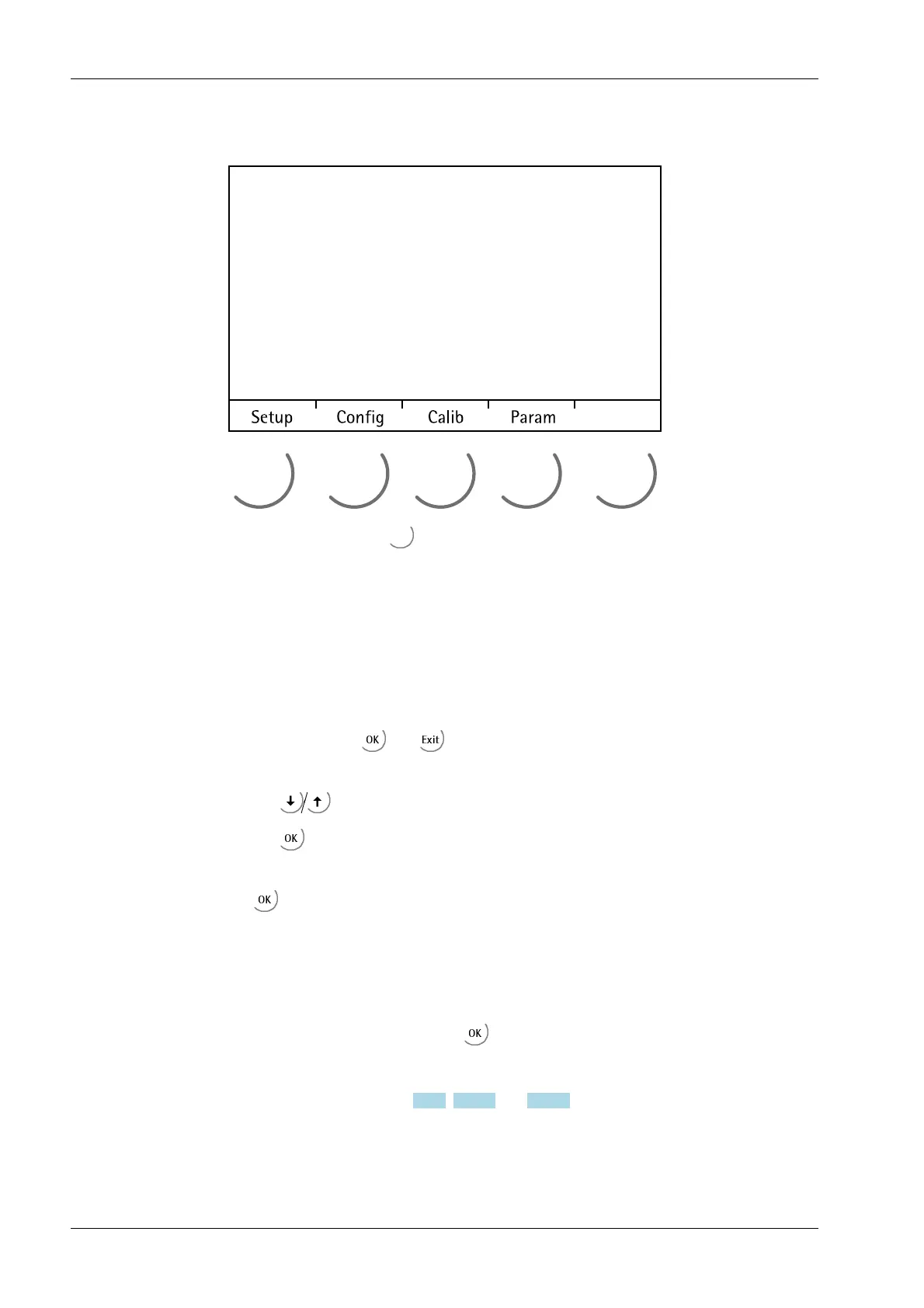

The functions of the ve softkeys below the graphic display are indicated in the
bottommost text line of the display. Softkey functions shown in gray cannot be selected
at the active menu level or with the current access privileges.
In the descriptions of operating sequences which entail the use of softkeys, the softkey
function to be selected is shown in square brackets; the softkey symbol is not displayed;
example: [Calib].
3.4.4.3 Navigation key operation
Menu
The cursor keys, the and keys are used to navigate through the menus.
Parameters
Use the cursor keys to select the individual parameters.
Use the key to conrm the selection.
The required values | texts are entered via the alphanumeric keys.
The key is used to check the ☑ box.
If the list of parameters is long, a vertical bar graph on the left (black and gray) shows
which part of the list is displayed.
An arrow in front of a menu item indicates that there are menu sublevels.
Possible settings and an available selection list is indicated by double arrows.
The parameter is selected using the key.
3.4.4.4 Operation using VNC
User interface, see Chapters 3.4.2, 3.4.3.1 and 3.4.4.1.
