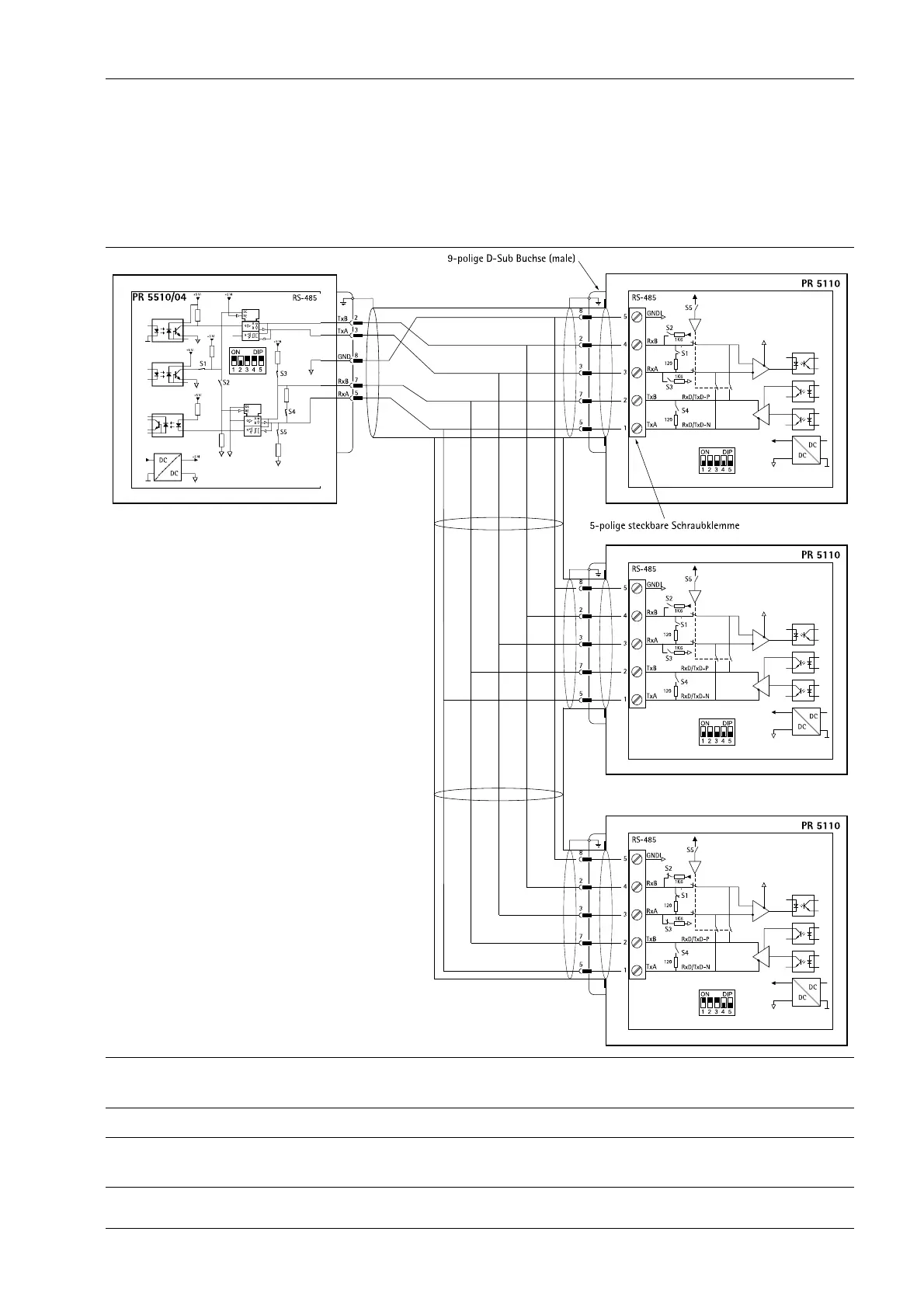

4.6.3.2.5 Connecting multiple PR 5110 remote displays
Multiple PR 5110 remote displays can be connected via the RS-485 interface.
Four-wire transmission and full duplex (simultaneous sending and receiving) is possible.
Example:
Switch settings
PR 5410 PR 5110-1 PR 5110-2 PR 5110-3
ON: S1, S3, S4, S5
OFF: S2
ON: ---
OFF: S1, S2, S3, S4, S5
ON: ---
OFF: S1, S2, S3, S4, S5
ON: S1, S2, S3
OFF: S4, S5
