Conguration
PR 5410 PR 5110-1 PR 5110-2 PR 5110-3
- [Serial ports para-
meters]- [Remote dis-
play]- [Slot 1/2 RS-485]
[Param]- [Mode]- [single
transmitter]
[ ]- [oP 10]- [LInE]-
[rS485]
[ ]- [oP 12]- [tokEn]-
[oFF]
[ ]- [oP 13]- [SEnd-
ModE]- [SEnd]
[ ]- [oP 14]- [WEIght]-
[FolloW]
[ ]- [oP 15]- [WPkEy]-
[SElEct]
[ ]- [oP 10]- [LInE]-
[rS485]
[ ]- [oP 12]- [tokEn]-
[oFF]
[ ]- [oP 13]- [SEnd-
ModE]- [SEnd]
[ ]- [oP 14]- [WEIght]-
[FolloW]
[ ]- [oP 15]- [WPkEy]-
[SElEct]
[ ]- [oP 10]- [LInE]-
[rS485]
[ ]- [oP 12]- [tokEn]-
[oFF]
[ ]- [oP 13]- [SEnd-
ModE]- [SEnd]
[ ]- [oP 14]- [WEIght]-
[FolloW]
[ ]- [oP 15]- [WPkEy]-
[SElEct]

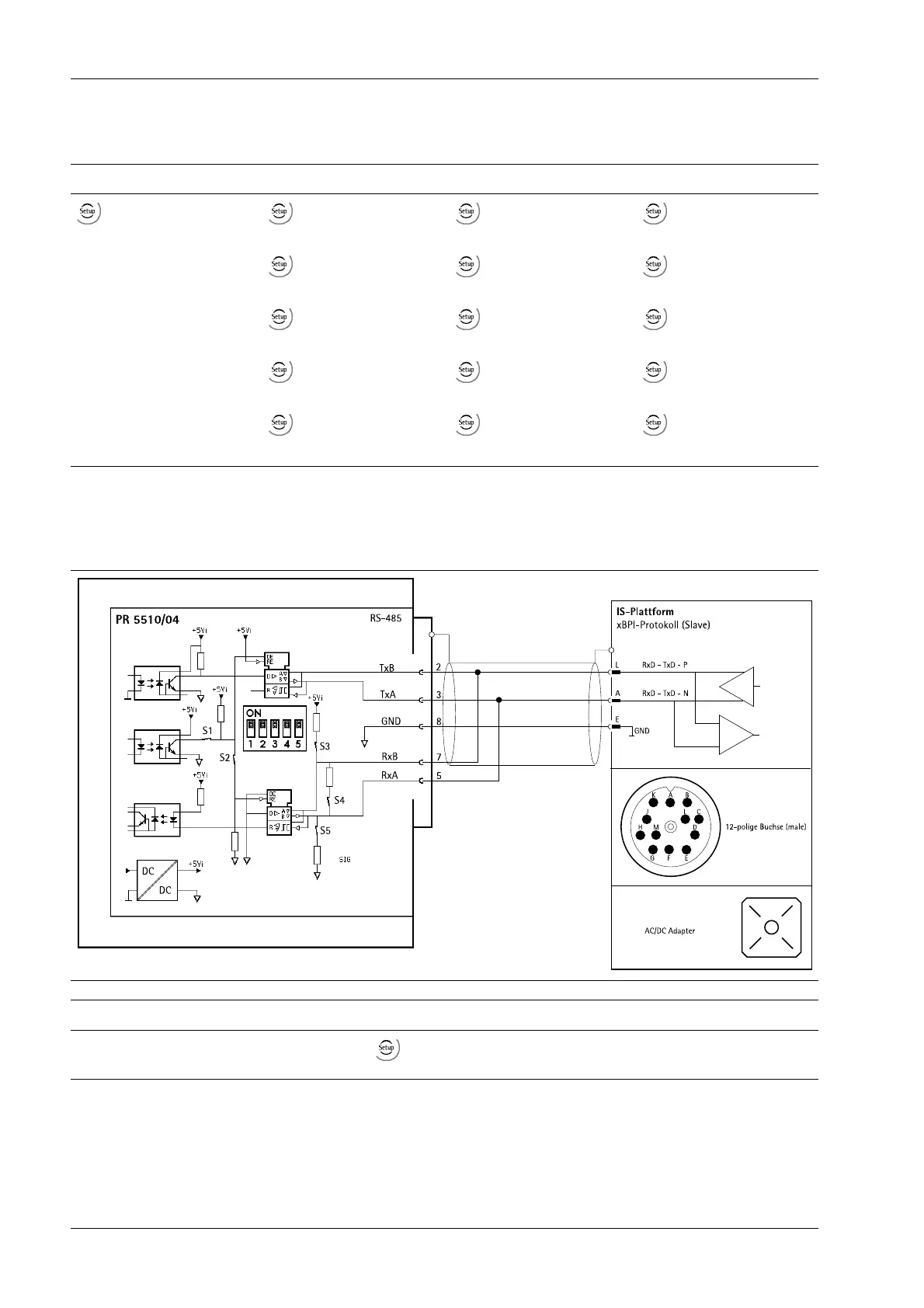

4.6.3.2.6 Connecting an IS platform
One IS platform scale with xBPI or SBI protocol can be connected via the RS-485 interface
(2-wire).
Switch settings PR 5410 Conguration PR 5410
ON: S1, S2, S3, S4, S5
OFF: …
- [Serial ports parameters]- [xBPI port]- [Slot 1/2 RS-485]
