TRANSPORT MODE: Transportation

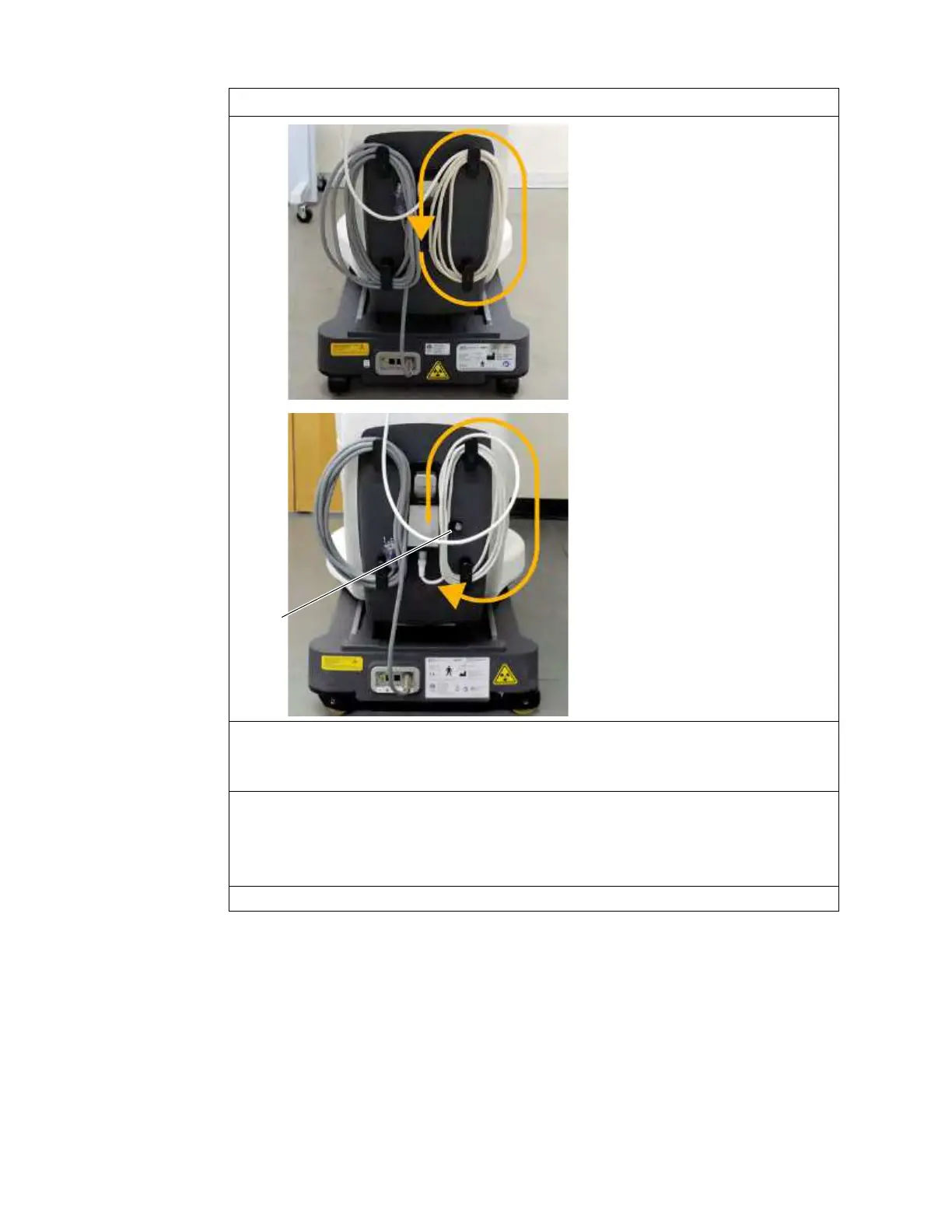

Pendant Cable without Strain Relief:
Coil counter-clockwise from bottom-right
hook.
Pendant Cable with Strain Relief
a
:
Coil clockwise from top-right hook.
5. Look at the base of the system and verify that:
• The base is raised.
• The system is on its casters.
6. Make sure that the Ring is latched in an orientation that:
• Is parallel to the base.
• Has the Gimbal in line with the column.
See section 3.3.6 Rotating and Latching the Ring in Transport or Scan Position.
7. View the forward-camera image on the Pendant Display.
