NICE1000
new
User Manual Description of Function Codes
- 133 -
F6-06 Elevator function control 1
Bit6
Clear oor number
and display direction
in advance
The displayed oor number is cleared before the
elevator reaches the target oor.
If the elevator needs to change the direction, the
changed direction is displayed in advance.
0
Bit8 Hall call not directional
It is used for the application where there is only one
hall call button. The hall call input can be connected
to the up button input or down button input for this
oor on the MCB.
0
Bit9
Not detecting analog
wire breaking
The system does not detect analog wire breaking
during normal running.
0
Bit10
Door lock
disconnected once
when inspection
turned to normal
When the inspection state is turned to the normal
state, the elevator can enters the normal state only
after the door lock is disconnected once.
0
You can view and set F6-06 as follows:
The methods of viewing F6-06 are as follows:
Method 1 (viewing decimal value): After you enter F6-06, the operation panel displays a
decimal number, corresponding to the sum of all the valid binary values. For example, if
Bit0, Bit3, and Bit8 are valid and other bits are invalid, the displayed decimal number is
00265. The decimal number can be viewed only and cannot be changed.
Method 2 (viewing bit): On the decimal number display interface, press
or ,
and the operation panel displays the value in bits.

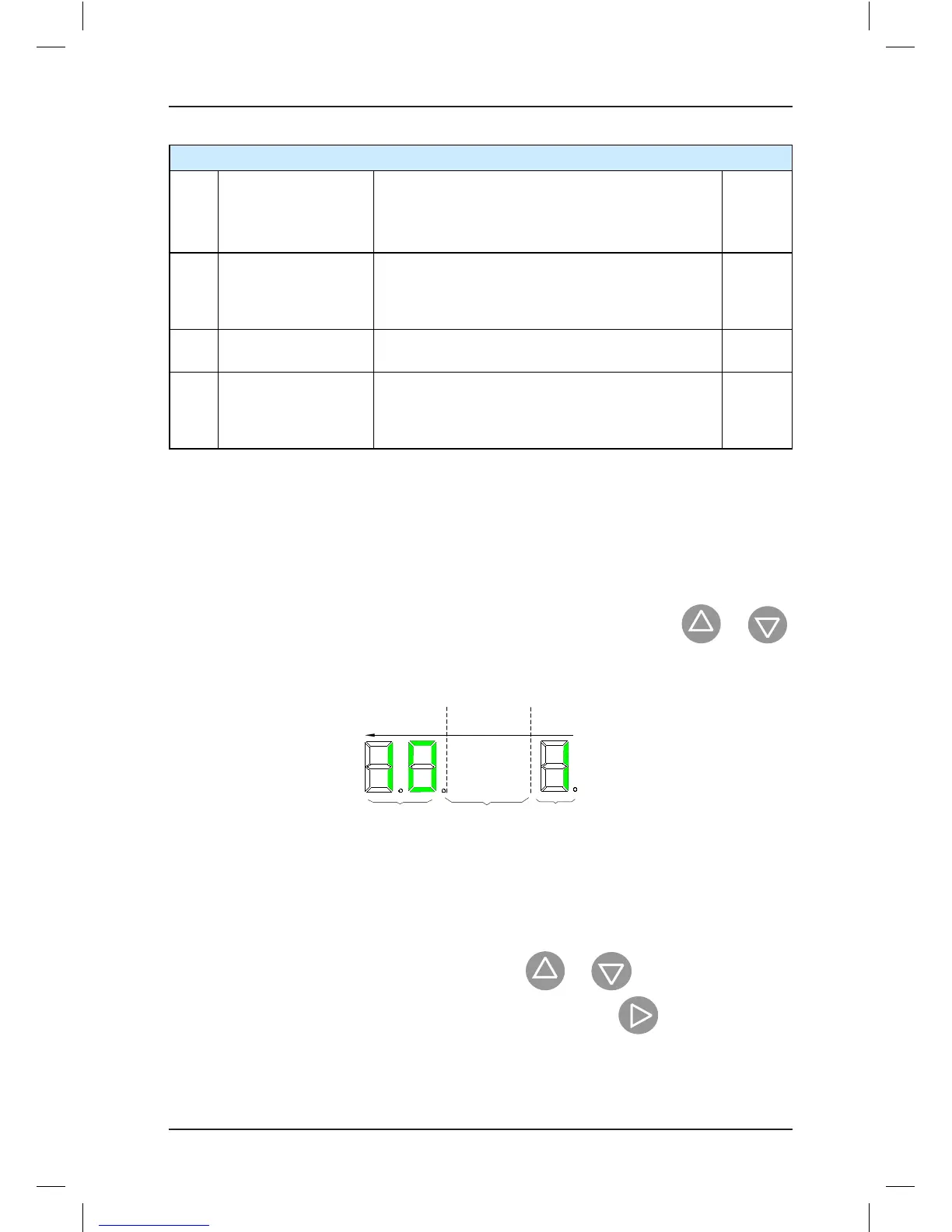

Figure 7-6 Viewing F6-06 in bit
123
Bit statusBit Reserved
As shown in the preceding gure, the LEDs are numbered 1, 2, and 3 from right to left. LEDs
2 and 3 indicate the current bit, and LED 1 indicate the status of the current bit: 1 (valid) or
0 (invalid). The preceding gure shows that Bit10 is valid, that is, the function "Door lock
disconnected once when inspection turned to normal" is enabled.
The method of setting F6-06 is as follows:
You can set a total of 16 bits (Bit0 to Bit15). Press
or on the operation panel
to view the bits (indicated by LEDs 2 and 3) cyclically, and press
to set the status of
the current bit (indicated by LED 1).
