- 116 -
Group F3: Running Control Parameters
Function Code Parameter Name Setting Range Default Unit Property
F3-00 Startup speed 0.000–0.030 0.000 m/s
★
F3-01 Startup holding time 0.000–0.500 0.000 s
★
These two parameters are used to set the startup speed and startup speed holding time.
For details, see Figure 7-2.
The parameters may reduce the terrace feeling at startup due to static friction between the
guide rail and the guide shoes.
Function Code Parameter Name Setting Range Default Unit Property
F3-02 Acceleration rate 0.200–0.800 0.300 m/s
2
★
F3-03 Acceleration start jerk time 0.300–4.000 2.500 s
★
F3-04 Acceleration end jerk time 0.300–4.000 2.500 s
★
These parameters are used to set the running curve during acceleration of the elevator.
Function Code Parameter Name Setting Range Default Unit Property
F3-05 Deceleration rate 0.200–0.800 0.300 m/s
2
★
F3-06 Deceleration end jerk time 0.300–4.000 2.500 s
★
F3-07 Deceleration start jerk time 0.300–4.000 2.500 s
★
These parameters are used to set the running curve during deceleration of the elevator.
•
F3-02 (F3-05) is the acceleration rate (deceleration rate) in the straight-line acceleration
process (deceleration process) of the S curve.
•
F3-03 (F3-07) is the time for the rate to increase from 0 to the value set in F3-02 (F3-05)
in the end jerk segment of the S curve. The larger the value is, the smoother the jerk is.
•
F3-04 (F3-06) is the time for the rate to decrease from the value set in F3-02 (F3-05) to 0
in the start jerk segment of the S curve. The larger the value is, the smoother the jerk is.

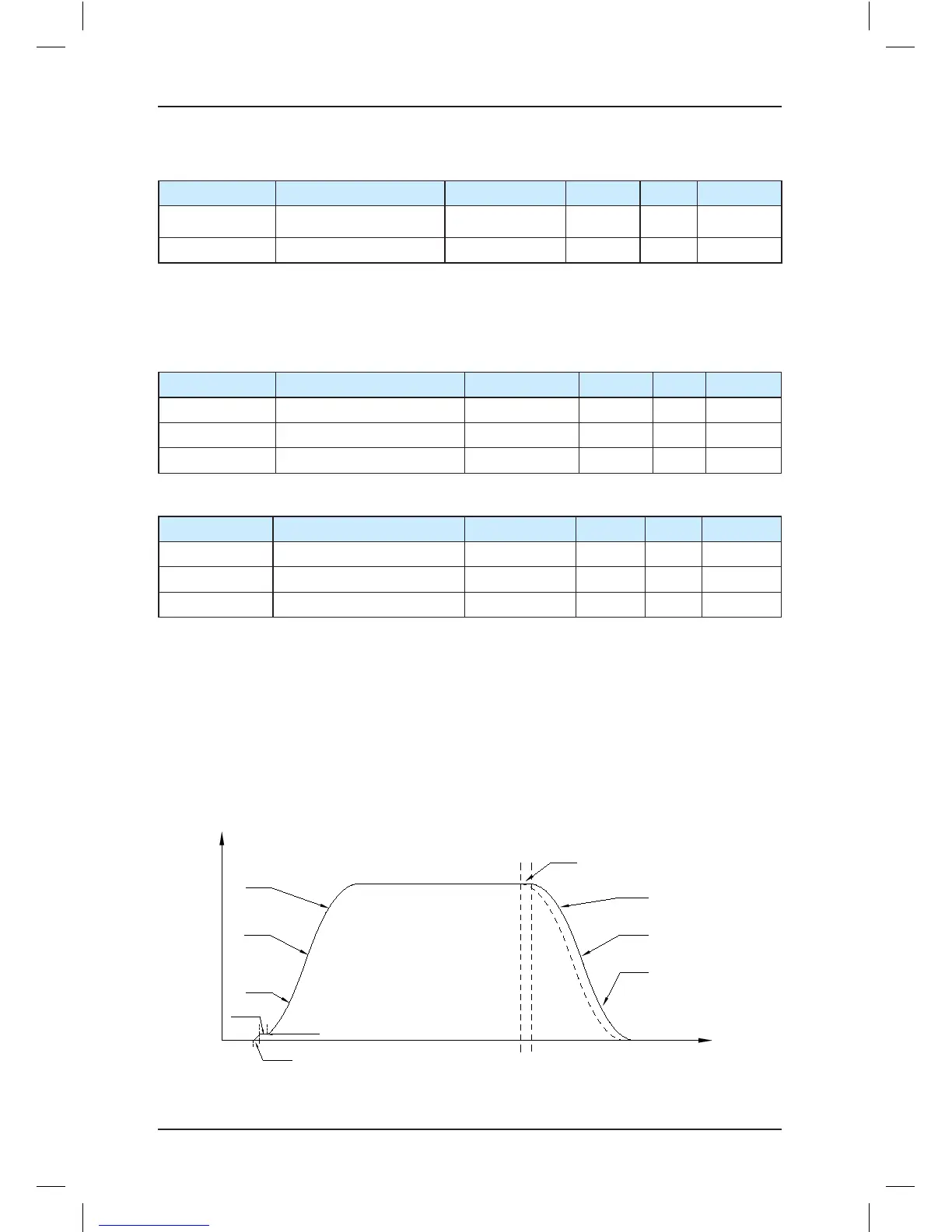

Figure 7-2 Setting the running curve
