NICE1000
new
User Manual Mechanical and Electrical Installation
- 41 -
Mark Code Terminal Name Function Description Terminal Arrangement
CN1
YM/Y4/Y5/
Y23 to Y27
Relay output
Normally-open (NO),
maximum current and
voltage rating:
5 A, 250 VAC
Function set in F7-03 to
F7-27
Y26
Y25
Y24
Y23
Y5
Y4
YM
Y27
CN1
CN2 Interface for connection to the MCB
CN2
3
.
Indicators
Table 3-5 Description of indicators on the MCTC-KZ-D
Mark Terminal Name Function Description
L27 to L50
Extension button signal
collection/feedback
indicator
When the extension oor button input signal is active
and the response signal is output, this indicator is ON
(green).
Y4, Y5,
Y23 to Y27
Extension relay output
signal indicator
When the extension relay output of the system is
active, this indicator is ON (green).
3.3.3 Selection and Use of the MCTC-PG Card
The NICE1000
new
can implement CLVC only with use of the MCTC-PG card. The following
figures show the appearance of the MCTC-PG card and its installation on the controller.
Directly insert the J1 terminal of the MCTC-PG card into the J12 terminal of the controller.

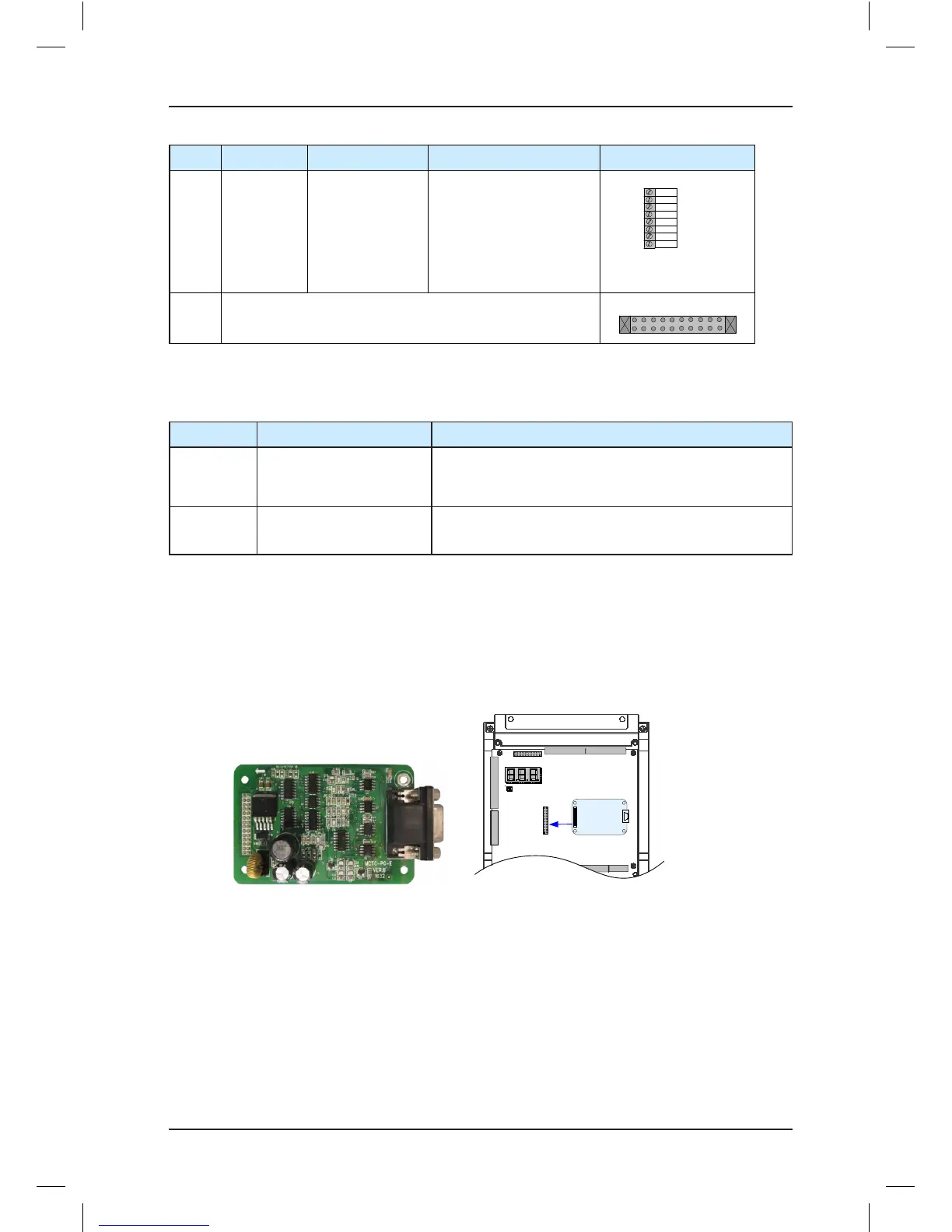

Figure 3-8 Appearance of the MCTC-PG card and its installation on the controller
J1
MCTC-PG
card
CN1
J12
Directly insert
1. Model selection
Monarch provides four PG card models, MCTC-PG-A2, MCTC-PG-D, MCTC-PG-E and
MCTC-PG-F1 for different encoder types, as described in the following table.
