Mechanical and Electrical Installation NICE1000
new
User
Manual
- 36 -
3.3 Electrical Installation
3.3.1 T
erminal
Arrangement and Wiring Description
■
T
erminal Arrangement

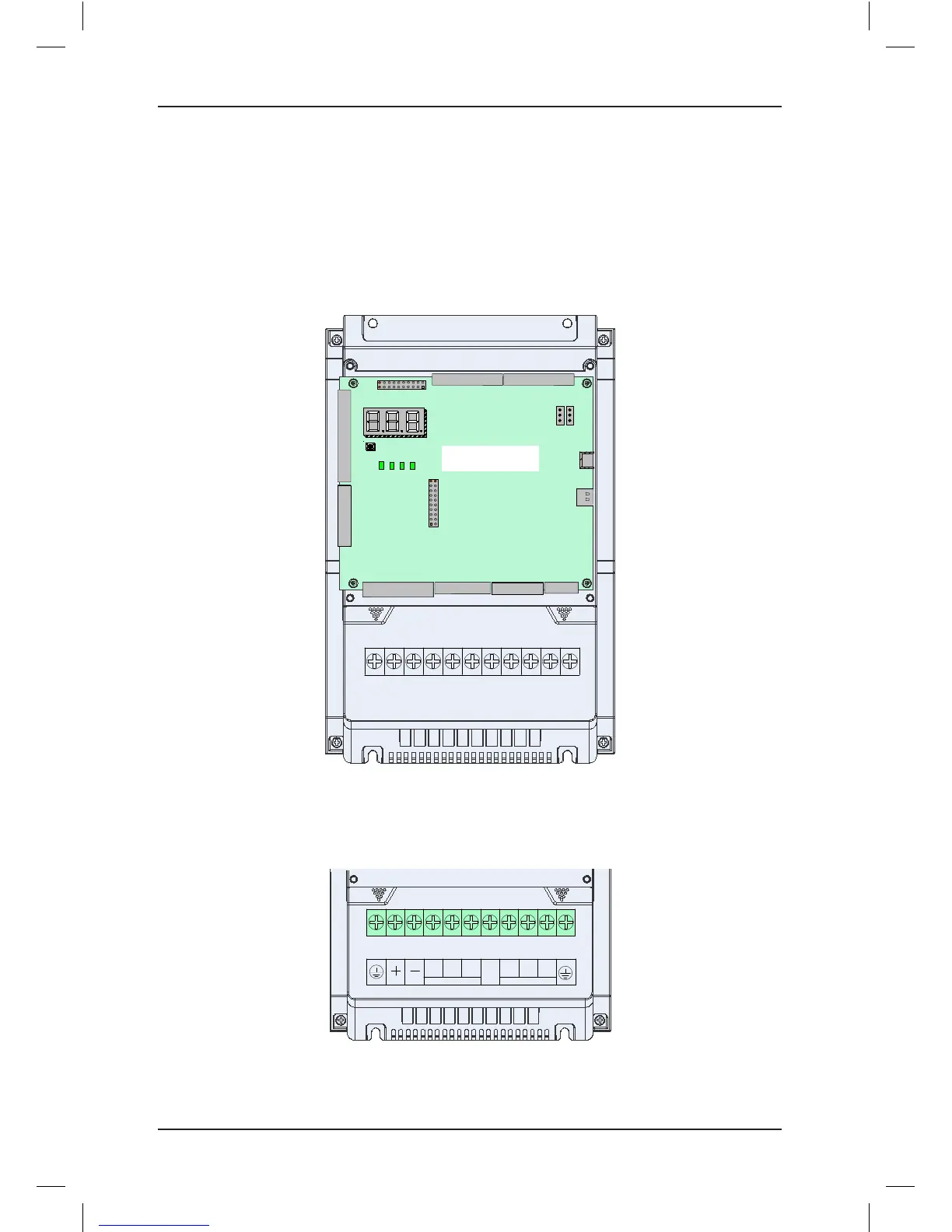

The following gure shows terminal arrangement of the NICE1000
new
.
Figure 3-3 T
erminal arrangement of the NICE1000
new
CN4
CN12
S1
J9
J10
ER
OK
CAN
Reserved
CN1
CN6
CN3
CN8
CN7
CN9
MCTC-MCB-H
J12
CN5
CN2
CN10
■
Description of Main Circuit T
erminals
The following gure shows main circuit terminal arrangement.
Figure 3-4 Main circuit terminal arrangement
R
S
T
PB
U
V
W
POWER
MOTOR
36
38
